Piston Filler / Liquid Filling Machine

Piston Filler / Liquid Filling Machine
Piston Filler / Liquid Filling Machine
Request a Quote
LQ-LF

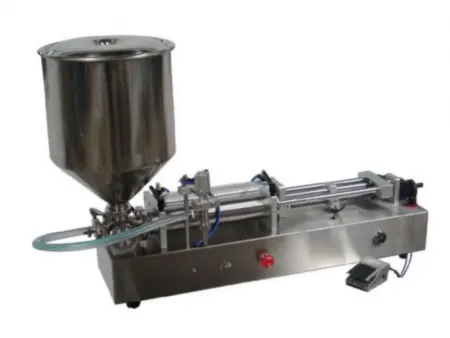

Benchtop piston filling machine for liquids and viscous products

The benchtop piston filling machine is designed to handle a wide range of liquid and semi-liquid products. It is the ideal solution for the cosmetic, pharmaceutical, food, and pesticide industries, offering exceptional performance in potentially explosive or moist environments. Powered entirely by air, these machines eliminate the risk of electrical hazards. The precision-engineered components that come in contact with the product, made of 304 stainless steel and processed by CNC machines, ensure superior durability and compliance with the highest safety standards. The surface roughness of these components is maintained below 0.8, contributing to the filling machine’s consistent performance and industry-leading status domestically.

Specifications
Model LQ-LF 1-3 LQ-LF 1-6 LQ-LF 1-12 LQ-LF 1-25 LQ-LF 1-50 LQ-LF 1-100
Filling Speed 0-50 bottles/min (depending on the material and its volume)
Filling Range 15-30 ml 15-60 ml 3-120 ml 60-250 ml 120-500 ml 250-1000 ml
Filling Accuracy About ± 0.5%
Air Pressure 4-6kg/cm2
Features
  • Operates on compressed air, ideal for explosion-resistant or damp environments
  • Pneumatic controls and mechanical positioning deliver top filling accuracy
  • Filling volume is easily adjusted using screws and a counter, displaying real-time filling volumes for precise operations.
  • Features an emergency stop button that reverts the piston to its original position and stops the filling process immediately for safety
  • Offers 'Manual' and 'Auto' filling modes to adapt to various operational needs
  • Designed to significantly reduce the chances of equipment malfunction
  • Optional material barrel available to cater to specific production requirements
