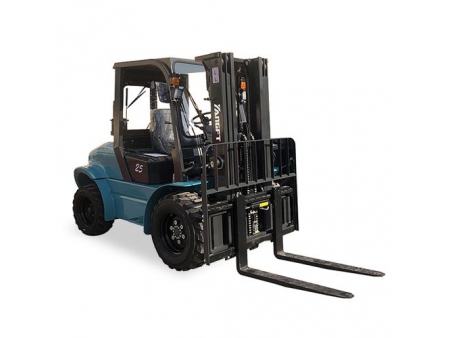

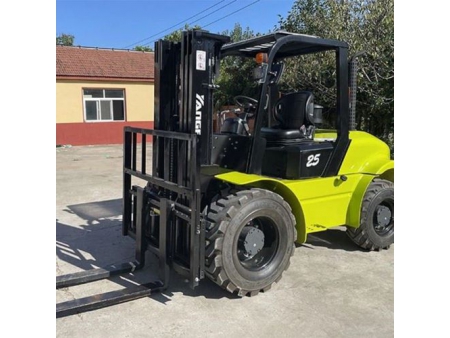

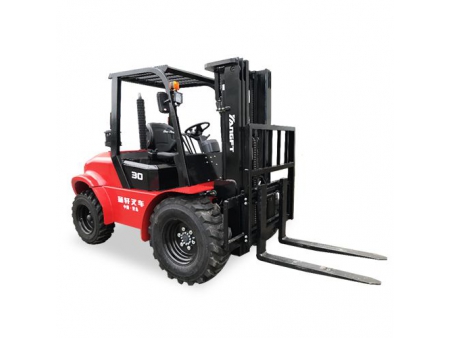

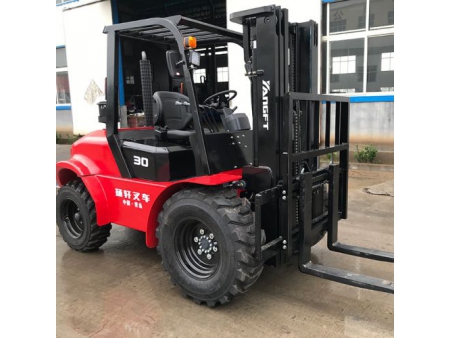

2-Wheel Drive Rough Terrain Forklift 2.5-4 Tonne
S Series
The spacious ground clearance and wide, deep-tread tires enhance traction and shock absorption, ensuring better maneuverability and stability. The upgraded cooling system effectively tackles various challenging terrains, significantly improving heat dissipation for operational components and extending their lifespan.
- 2500-4000 kg
- 3000 mm
- 22 km/h
- 2910-2930 mm
- Large deep-tread tyres deliver an excellent performance in terms of climbing and shock absorption.
- The wide mast design offers improved visibility and increases stability and safety, making it ideal for outdoor operations.
- The OPS and suspended seat (optional) enhance comfort by providing a seat with a safety belt and an adjustable steering wheel, allowing for customization based on different operators or tasks. The OPS seat will automatically stop the forklift when the operator leaves the seat.
- The cooling system has been upgraded with advanced technology to achieve efficient heat dissipation and satisfy the needs of continuous operation.
- The substantial ground clearance allows forklifts to tackle challenging outdoor conditions with ease.
- The hydraulic system is at the front part of the forklift, which conforms to the ergonomic concepts.
Material handling jobs in farms, mine and complex outdoor terrains.
Engine (Optional)
Optional advanced engines from ISUZU, Mitsubishi, Kubota, Yanmar, and Euro3/5 are available, offering economical and environmentally friendly performance. These engines are designed for reliability and durability, ensuring easier maintenance and servicing.
Seat (Optional)
Featuring an OPS system with an ergonomic design, it includes multiple adjustable settings to help alleviate operator fatigue during extended driving sessions.
Mast (Optional)
Offers 2-3 stage standard masts and multi-stage full free lift masts, providing a high level of customization to accommodate various operational needs.
Load-Backrest
Designed to prevent cargo slippage, this feature enhances safety throughout the operation.
Control System (Optional)
The integrated dashboard, along with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation.
Overhead Guard
Engineered to ensure driver safety, also supports customizable options for increased width and height to meet specific operational needs.
Off-road Tire
The off-road tires are specially designed with wider profiles and deeper treads, providing enhanced traction, greater burst capability, and improved skid resistance.
Control Valve (Optional)
With a practical design, it ensures straightforward operation and offers customization options to meet various needs.
| Model | | | | | ||||
| Characteristics | Power | Diesel | ||||||
| Capacity | kg | 2500 | 3000 | 3500 | 4000 | |||
| Load Centre | mm | 500 | 500 | 500 | 500 | |||
| Lift Height | h | mm | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | Wa | mm | 2910 | 2910 | 2910 | 2930 | ||
| Performance | Travel Speed | Load | km/h | 22 | 22 | 22 | 22 | |
| Lift Speed | Load | mm/s | 450 | 440 | 420 | 420 | ||
| Dimensions | Total Length | Without fork | L2 | mm | 2940 | 2940 | 2940 | 2980 |
| Total Width | b | mm | 1550 | 1550 | 1550 | 1550 | ||
| Mast Height | h1 | mm | 2230 | 2230 | 2230 | 2230 | ||
| Chassis | Tyre | Front | 12-16.5-14PR | 12-16.5-14PR | 12-16.5-14PR | 14-17.5-16PR | ||
| Rear | 27x10.5-15PR | 27x10.5-15PR | 27x10.5-15PR | 10-16.5-12PR | ||||
| Wheelbase | L3 | mm | 1850 | 1850 | 1850 | 1850 | ||
| Service Weight | No load | kg | 4650 | 4800 | 4950 | 5200 | ||
| Power | Engine | Model | C495BPG | C495BPG | C495BPG | A498BPG | ||
| Rated power | kW/r | 42kW/2650r/min | 42kW/2650r/min | 42kW/2650r/min | 45kW/2500/min | |||
| Rated torque | Nm/r | 174N.m/1800-2000r/min | 174N.m/1800-2000r/min | 174N.m/1800-2000r/min | 193N.m/1600-1800r/min | |||
-
