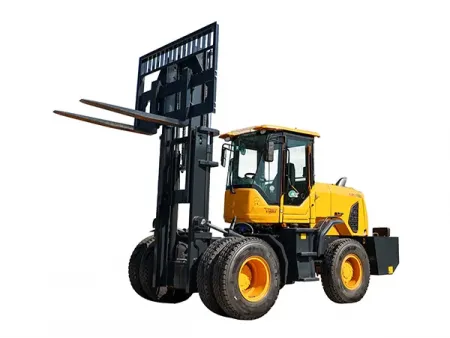

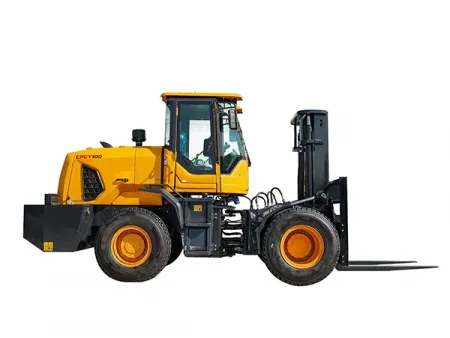

CPCY50/70/100 Rough Terrain Forklift

Request a Quote

Website: http://sutemachinery-en.com/6-3-2-rough-terrain-forklift.html

Off-road forklift truck with rated load capacity options of 5000kg, 7000kg and 10000kg

• Rated load capacity
  5000-10,000kg
• Load center distance
  500-600mm
• Wheelbase
  2360mm
• Total machine weight
  7000-9310kg

Specifications

Model	CPCY50	CPCY70	CPCY100
Rated load capacity	5000kg	7000kg	10,000kg
Load center distance	500mm	600mm	600mm
Wheelbase	2360mm	2360mm	2320mm
Total machine weight	7000kg	8200kg	9310kg
Tire	16/70-20 high-pressure tires	16/70-20	Front 4, rear 2, 11.00-20 pneumatic tires
Track width	1735mm	1735mm	1860mm
Engine	National IV 4102 turbocharged	4102 pressurized	National IV 4102 turbocharged
Rated power	36.8kW	36.8kW	36.8kW
Dimensions (L×W×H)	4750×2120×2820mm	4750×2120×2820mm	6020×2000×2900mm
Ground clearance	230mm	230mm	240mm
Gantry tilt angle	Front 6°, rear 12°	Front 6°, rear 12°	Front 10°, rear 12°
Standard lifting height	3000mm	3000mm	3000mm
Fork length	120×1500mm	150×1500mm	150×1500mm
Min. turning radius	2650mm	2650mm	2650mm

Features

• Built with a high ground clearance chassis and wide off-road tires, ensuring excellent traction and stability on uneven ground.
• Lifting height up to 4.5 meters allows safe and steady handling of heavy loads even on challenging terrain.
• The fully enclosed cabin can be equipped with heating, air conditioning, reversing camera, LED lights, and ROPS protection frame for enhanced comfort and safety.
• All cabins are FOPS-certified (Falling Object Protective Structure) to safeguard operators from potential falling objects during operations.
• The mast plunger is equipped with an HVF hydraulic fuse, which automatically reduces mast drop speed in case of hydraulic hose failure, preventing cargo damage or equipment accidents.
• The automatic mast descent valve lowers lifting capacity above 15 feet, maintaining load balance and preventing overturning caused by overloading or uneven weight distribution.
• The MYZG LiveLink telematics system provides real-time location feedback and geofencing alerts, helping monitor operating range and preventing unauthorized movement or theft.
• Factory-installed anti-theft devices feature dual security settings (key or keypad). The system automatically arms itself after engine shutdown, effectively reducing theft risk.

Optional attachments

• Flat bucket
• Log grapple
• Bucket
• Forward tilting forks
• Round bale clamp
• Square bale clamp
