Automatic Paste Filling Machine Manufacturer

Automatic Paste Filling Machine

Request a Quote

View All: http://filling-packaging.com/1-2-1-automatic-paste-filling-machine.html

Piston filler for filling pastes, sauces and creams

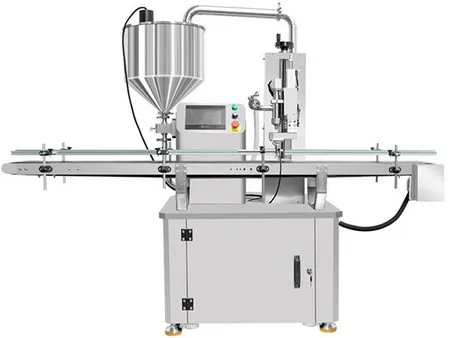

The automatic paste filling machine is designed for filling jars and bottles. Controlled by PLC, it features easy programming and maintenance. Utilizing a piston metering principle, it combines electrical and pneumatic functions, offering a compact structure, stable and reliable performance, accurate filling, and high adaptability, easy to use and maintain.

Technical Specifications

Model: YX-FM1000
Filling Range: 150-1000ml
Speed: 7-15 bottles per minute
Accuracy: ＜±1%
Power Supply: 220V-240V 50HZ
Air Pressure: 4-6MPa
Machine Dimensions (L×W×H): 1200×1000×1300mm
Machine Weight: 160kg

Applications

This machine is widely used for filling various semi-fluid materials, pastes, viscous materials, sauces, and materials with particles. Applications include chili sauce, honey, syrup, ketchup, fruit juice drinks, jams, peanut butter, sesame paste, cream, etc.

Features

Parts in contact with food are made of high-quality stainless steel, facilitating easy disassembly, assembly, and cleaning.
Simple adjustment of filling volume and speed. The machine will not fill if no bottle is detected. Automatic level control for filling incorporated.
High adaptability, allowing quick adjustments and replacements for different bottle shapes and sizes without changing components.
Anti-drip filling nozzles ensure no dripping or stringing during filling.
