Floor-standing centrifuge for blood collection tubes with serum separation gel

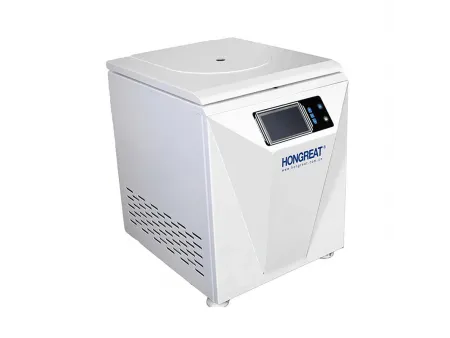

HY340 Floor-Standing Centrifuge for Gel Separator Tubes

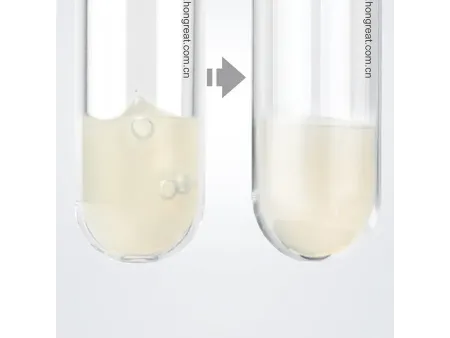

This centrifuge for gel separator tubes is designed for use in blood collection tube assembly lines, for centrifuging gel separator tubes. It features a high-performance AC frequency motor with high precision speed control, ensuring efficient operation. The system automatically calculates the RCF (relative centrifugal force) value for accurate and consistent results. It is ideal for removing air bubbles from the separation gel within tubes after gel filling.

Technical Specifications
  • Production capacity: 340 pcs/h (Ø13×75-100mm), 148 pcs/h (Ø16×100mm)
  • Max. speed: 3000r/min
  • Time control: 0-99min
  • Power: 0.6kW/AC220V
  • Overall dimensions (L×W×H): 780×650×800mm

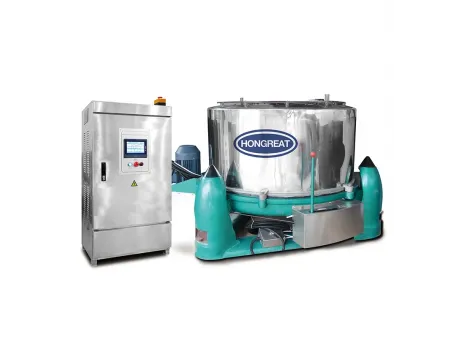

HY1000 Large Capacity Centrifuge for Gel Separator Tubes

This large capacity centrifuge is designed for the post-gel filling centrifugation of separator tubes, effectively removing air bubbles from the gel. The centrifuge offers flexible configuration options to accommodate a variety of tube sizes and quantities, making it an ideal solution for high-volume production environments.

Configurations
  • Centrifugation with foam tray: Processes up to 3,600 tubes per cycle (Ø13, H75-100mm)
  • Centrifugation without foam tray:
    Processes up to 5,000 tubes per cycle (Ø13, H75-100mm)
    Processes up to 4,000 tubes per cycle (Ø16×100mm)
Technical Specifications
  • Structure: three leg suspension
  • Centrifuge time: 25-30 min/cycle
  • Speed adjustment: automatic frequency conversion
  • Centrifuge speed: 800-1000r/min
  • Power: 9kW/AC380V
  • Overall dimensions (L×W×H): 2400×2400×1600mm

HY340 Floor-Standing Centrifuge for Separation Gel PRP Tubes

This floor-standing centrifuge features an AC frequency motor with high precision speed control, allowing for rapid acceleration and deceleration. It automatically calculates the RCF (relative centrifugal force) value, ensuring optimal performance. Designed for use in medical production lines, this centrifuge efficiently removes air bubbles from PRP separation gel tubes after gel filling, enhancing the quality and consistency of the final product.

Technical Specifications
  • Production capacity: 148 pcs/h (Ø16×100mm, Ø16×125mm), 32 pcs/h (Ø30×120mm)
  • Max. speed: 3500r/min
  • Time control: 0-99min
  • Power: 0.6kW/AC220V
  • Overall dimensions (L×W×H): 780×650×800mm
