B15D Series Double-station Blow Molding Machine
Request a Quote
This double-station blow molding machine has up to 8 die heads, allowing it to be used for the production of multi-layer plastic bottles with a volume of 10 to 30L, and with or without liquid level lines. This blow molding machine is used to process a variety of plastics, including HDPE, PVC, PC, PP, PETG and more.

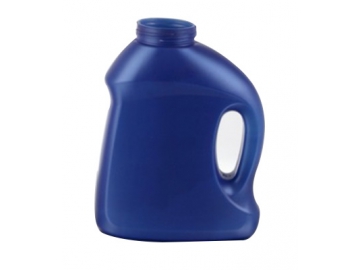

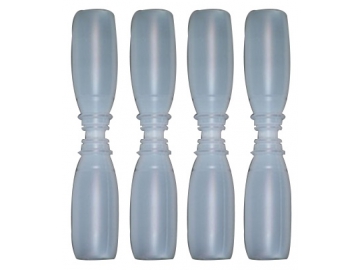

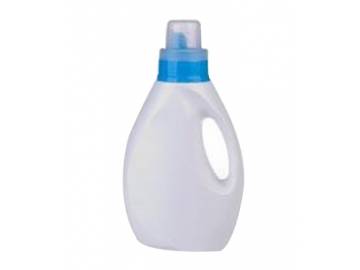

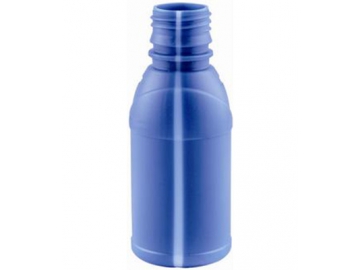

Samples
Technical Specification
| Model | B15D-750 | B15D-640 | B15D-600 | B15D-560 |
| Clamping Force | 150kN | 150kN | 150kN | 150kN |
| Hydraulic System Power Consumption | 30kW | 22kW | 30kW | 22kW |
| Mold Platen Opening/Clamping Stroke | 500/220mm | 500/220mm | 500/220mm | 500/220mm |
| Carriage Stroke | 750mm | 640mm | 600mm | 560mm |
| Cycle Time | 3.2S | 3.0S | 3.4S | 2.8S |
| Mold Size | Max.width:740mm | Max.width:630mm | Max.width:550mm | Max.width:550mm |
| Max.height:450mm | Max.height:450mm | Max.height:500mm | Max.height:450mm | |
| Min.thickness:2x110mm | Min.thickness:2x110mm | Min.thickness:2x120mm | Min.thickness:2x110mm | |
| Max.weight:2x250kG | Max.weight:2x250kG | Max.weight:2x400kG | Max.weight:2x250kG | |
| Machine Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Air Pressure | 6-10bar | 6-10bar | 6-10bar | 6-10bar |
| Air Volume | About 150m3/h | About 120m3/h | About 150m3/h | About 120m3/h |
| Dimension(L×W×H) | 6000x6200x3500mm | 5400x5150x3500mm | 6500x6500x4000mm | 5400x4650x3500mm |
| Machine Weight | About 18 Tons | About 12.6 Tons | About 19.2 Tons | About 15 Tons |
