  • Types:

    Optical sorting machine with rotary slotted metal disk

  • Suited for:

    Bolts, screws, spindles, threaded pins and more

  • Inspection Accuracy:

    ±0.02mm

Inspecting products
Inspection screen

This inspection equipment is outfitted with four industrial CCD cameras. The CCD1 is a head-up camera used for inspecting the multi-segment height and outer diameter of the product. The CCD2 is a vertical bottom view camera used for inspecting the aperture and the burr of the product. The CCD3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect for chamfering. The CCD4 is a 45° tilt camera used to determine if the product has internal threads.

  • CCD1, head-up
  • CCD2, vertical bottom view
Technology parameters
  • Model: RK-1300
  • Head Outer Diameter (mm): 5-20
  • Head Thickness (mm): 2-10
  • Total Height (mm): 5-80
  • Inspection Accuracy: ±0.02mm
  • Air Pressure (Kg/cm²): 5
  • Host Computer: Industrial PC
  • Digital Camera: Industrial CCD
  • Net Weight (KGS): 650
  • Dimension (L*W*H) (mm): 1500*1100*1800

Customized service can be provided according to the detect demand.

Features
  • This machine can be customized based on its standard type or large type.
  • It is designed to inspect screws of general design. It can inspect screws with lengths ranging from 5 to 80mm.
  • We can equip the machine with an eddy current probe to inspect for the presence of heat-treatment, quality of the heat treatment, and size.
    1. NG optical fiber sensing blanking

      This machine features a solenoid operated blow-off to blank NG products.
      It has optical fiber sensing device behind the NG expel workstation to prevent NG products from being carried to the OK outlet.
      If it detects the NG product is not blanked, the machine will be automatically stopped by the control software.

    1. Solenoid operated blow-off

      This machine uses a solenoid operated blow-off which is high speed and contactless, protecting the products from damage the products.
      The compressed air is processed by the dryer equipped with fine micro filters.

    1. Multi-station rotary indexing table

      The products are conveyed via a vibration plate to the rotary indexing table.
      There are equidistant slots on the rotary indexing table which will pass the workstations of various cameras in turn to inspect related parameters.
      Products of different rod diameters require different rotary indexing tables.

Optional accessories

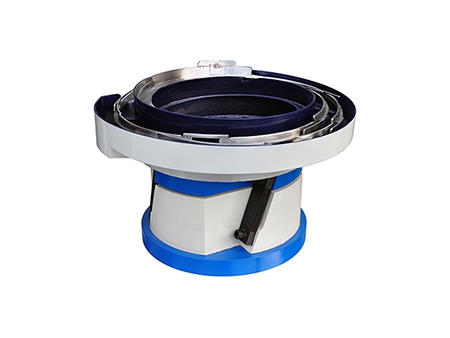

    1. Vibration bowl

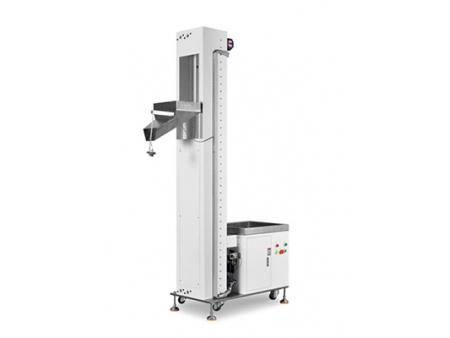

    1. Feeding elevator

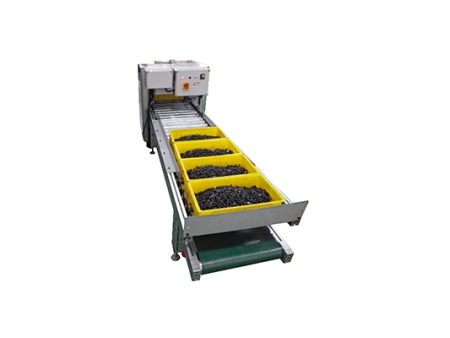

    1. Automated conveyor system
