YD-F9060G

  • YD-F9060G5i
  • YD-F9060GH
  • Utilizes 3 Ricoh GEN5i grey level industrial micro piezo printheads, offering precise and detailed printing
  • Provides a 90cm×60cm printing bed, perfect for a wide range of small format applications
  • Supports CMYK, white ink, and varnish (optional) for dynamic and versatile print outputs
  • Features eco-friendly UV curing inks and an efficient UV LED curing system, promoting greener printing practices
  • Expands printing possibilities to include cylindrical objects, enhancing the printer's versatility

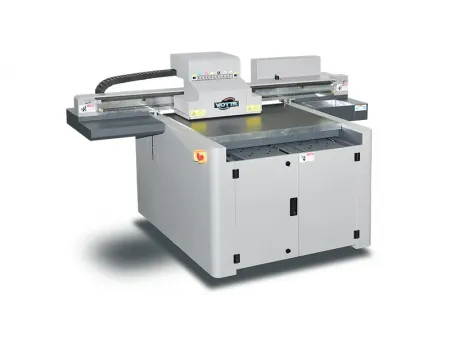

The small format UV printer model YD-F9060GH is designed with the latest G5i piezo printheads, to ensure bright, full-color images on its compact 90cm×60cm bed, achieving lifelike quality with minimal ink usage thanks to its 3.5pl droplet printing capability.

This flatbed printer represents a cost-effective solution for producing high-quality prints on items like phone cases, crafts, signs, wall panels, and cylindrical objects, making it an ideal choice for businesses specializing in personalized printing. Its capability to print on a diverse array of materials, from glass and acrylic to wood, ceramic, metal board, PVC, plastic, corrugated board, leather, and EVA, opens up a world of creative possibilities.

In short, if you're aiming to elevate your small-scale printing with professional-quality results, the YD-F9060GH offers the features, efficiency, and versatility you need.

Printing Samples
Specifications
Print head Ricoh-GEN5i grey level piezo print head
Printhead quantity 1-4 pcs (4-6 colors optional)
Printing size 900×600mm (3×2ft)
Print thickness Up to 150mm (5.9in)
Print resolution 720 ×1200 dpi
Working mode High speed mode Normal mode High resolution mode
Print mode Unidirectional and bidirectional
Ink color C, M, Y, K, W, V (optional)
Ink type Eco-friendly UV curable ink (No VOC)
RIP software Photoprint
Input format Adobe PostscriptPDF, JPEG, TIFF, EPS, AI
Printer weight 500kg
Power supply 220V/AC(±10%), 50/60 HZ, 1.5 kW 6.8A
Printer size (L×W×H) 2030×1200×1380mm

Packaging size (L×W×H) 2230×1400×1800mm

Working environment Temperature: 18℃~30℃ (64℉~86℉)
Humidity: 30%~70% (non-condensing)
Features
Printing Performance
  • The small format UV printer prints clear design with a resolution of 720×1200dpi. So whether you're working on detailed art or crisp text, this printing equipment has got you covered.
  • It's versatile, capable of printing directly onto almost any flat surface you can think of. Imagine printing vibrant designs on materials from leather to glass and everything in between.
  • Supports a broad color palette including CMYK, Lc, Lm, white ink, and varnish, enabling the creation of stunning 3D effects, embossed textures, and high-gloss finishes. The 3.5pl ink droplet size ensures efficient ink usage and beautiful color transitions.
  • The UV-LED ink curing tech means the ink dries faster, making the whole printing process more efficient.
  • Thanks to an advanced ink supply system, you don't have to worry about ink flow interruptions or quality issues.
High-Quality Accessories
  • This UV printer for small format printing is fitted with three industrial-strength Ricoh G5i grey piezo inkjet printheads. The printheads are durable and ensure your printing device works smoothly for a long time
  • The printer's built like a tank with its steel frame structure, so it's going to stay sturdy and reliable
  • Precision is key, and with imported servo motors plus high-precision guides and screws, your prints are always crisp and eye catching
  • The IGUS towline is designed to withstand high-speed movement, significantly reducing wear on the wire harness and prolonging its life, ensuring the system's reliability over time.
  • The print platform is specially treated to avoid any issues with the curing light bouncing back, ensuring your prints look fantastic every time
User-Friendly Function Design
  • An anti-collision device automatically stops the carriage if it encounters obstacles, protecting both the printheads and ensuring user safety.
  • Measuring the thickness of what you're printing on is super easy and automatic, saving you time and hassle.
  • A smooth ink supply is guaranteed with a smart negative pressure system, so you don't have to stress about ink spills or messes.
