Telescopic Wheel Loader
Request a Quote
Wheel loader with a telescopic lift arm for construction, agriculture, and municipal works requiring extra lifting heights
- Rated power
37-65kW - Overall length
5800-6500mm - Overall width
1800-2000mm - Max. discharge height
4400mm

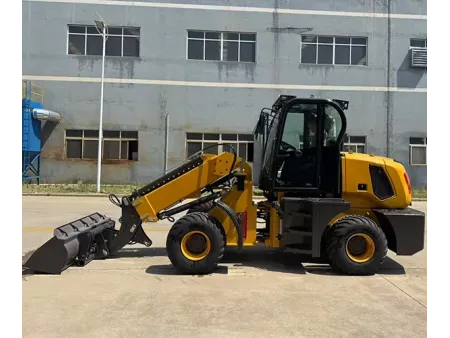

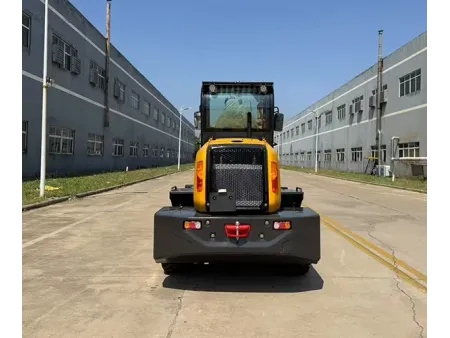

The telescopic wheel loader combines four-wheel drive and articulated steering with a high-strength telescopic boom and heavy-duty working components. Compared with traditional loaders, it provides a greater lifting height and working radius, offering enhanced versatility for various operational needs. The loader features a distinctive industrial yellow and black color scheme for clear visual recognition and safety.
Specifications
| Model | |||
| Engine | Yunnei YN25GB | Yunnei YN27GB | Yunnei YN33GBZ |
| Rated power | 37kW | 42kW | 65kW |
| Optional engine | Changchai/Yunnei/Kohler/Cummins | Changchai/Yunnei/Kohler/Cummins | Cummins/Changchai/Kohler/Cummins |
| Overall length | 5800mm | 5800mm | 6500mm |
| Overall width | 1800mm | 1900mm | 2000mm |
| Overall height | 2700mm | 2800mm | 2800mm |
| Max. discharge height | 4400mm | 4400mm | 4400mm |
| Min. discharge height | 3400mm | 3400mm | 3400mm |
| Transmission | Gearbox hydraulic converter drive shaft hub reduction axle | Gearbox hydraulic converter drive shaft hub reduction axle | Gearbox hydraulic converter drive shaft hub reduction axle |
| Bucket capacity | 0.65m³ | 0.75m³ | 1m³ |
| Max. load | 1500kg | 1800kg | 2000kg |
| Steering system | Articulated hydraulic steering | Articulated hydraulic steering | Articulated hydraulic steering |
| Driving mode | Four wheel drive | Four wheel drive | Four wheel drive |
| Hydraulic quick release | Yes | Yes | Yes |
| Mechanical joystick | Yes | Yes | Yes |
| Steady rise | Yes | Yes | Yes |
| Brake system | Four wheel disc brake | Four wheel disc brake | Four wheel disc brake |
| Parking brake | Disc brake | Disc brake | Disc brake |
| Tire | 20.5-16 Width: 300mm Diameter: 920mm | 23.5/70-16 Width: 330mm Diameter: 920mm | 16/70-20 Width: 380mm Diameter: 1075mm |
| Wheelbase | 2500mm | 2500mm | 2550mm |
| Track | 1500mm | 1550mm | 1600mm |
| System pressure | 16MPa | 16MPa | 20MPa |
| Weight | 4200kg | 4500kg | 5500kg |
Features
Reinforced drive axle for load capacity and off-road performance
- Equipped with dust-proof oil seals and a lubrication pipeline for durability.
- The axle adopts a thickened double U-shaped welded structure, increasing overall strength for heavy-duty applications.
Multi-functional control console
- Electro-proportional multifunction joystick integrates control for lifting, extension, and auxiliary attachments.
- Centrally positioned mechanical lever enables gear or working mode selection.
- Side control panels include power switches, ignition, and auxiliary function buttons (e.g., front/rear hydraulics or quick coupler).
Cabin and instrumentation
- LCD dashboard provides real-time data on machine status, including oil temperature, water temperature, speed, and operating hours.
- Multi-function camera monitor improves rear visibility and loading safety.
- Three-spoke steering wheel with emergency stop and functional switches offers ergonomic and intuitive operation.
Application Recommendations & Working Scenarios
- Farm operations: Ideal for loading and transporting feed, hay bales, and other agricultural materials.
- Construction sites: Suitable for handling gravel, mortar, wooden planks, and general material transport.
- Municipal projects: Efficient for loading, unloading, and transfer tasks in confined or narrow spaces.
- Forestry and attachment change applications: Can be quickly fitted with various attachments such as log grapples, snow plows, and bale clamps for versatile operation.
