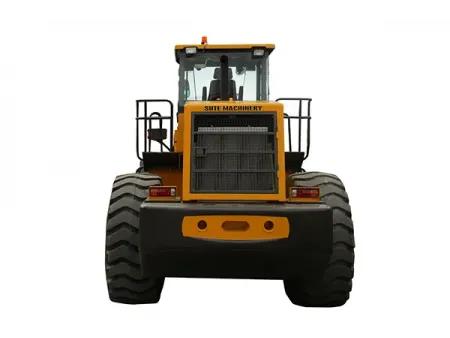

ST966H Wheel Loader

Request a Quote

Website: http://sutemachinery-en.com/1-2-8-wheel-loader.html

Heavy-duty wheel loader with diesel engine for mining, quarrying, and large-scale construction projects

Operating weight
19.5T
Rated load
6,000kg
Rated engine power
199kW
Rated rotate speed
2200r/min

Specifications

Operating weight	19.5T
Rated load	6,000kg
Bucket capacity	3.5m³ (standard) 4.0m³ (optional)
Engine model	WEICHAI WD10G270E201
Rated engine power	199kW
Rated rotate speed	2200r/min
Max. torque	920N.m
Max. traction force	≥185kN
Breakout force	≥200kN
Driving speed
Forward Ⅰ	0-8.5km/h
Forward Ⅱ	0-16.5km/h
Forward Ⅲ	0-25km/h
Forward IV	0-42km/h
Reverse Ⅰ	0-8.5km/h
Reverse Ⅱ	0-16km/h

Gradeability	28°
Overall length	8380mm
Overall width	3100mm
Overall height	3560mm
Bucket width	3170mm
Wheelbase	3350mm
Track width	2360mm
Min. ground clearance	470mm
Max. dumping height	3300mm
Max. dumping reach	1290mm
Transmission	Countershaft
Fuel tank capacity	230L
Hydraulic tank capacity	270L
Raise cycle time	≤6.8s
Total cycle time	≤12.5s
Tire type	26.5-25

Features

High-performance power system
Powered by a Weichai WD10G270E201 engine delivering 199 kW of output, the ST966H provides high torque at low RPM for both fuel efficiency and strong performance. Optional engine configurations including Cummins, Steyr, and Shanghai Diesel are available to meet diverse working conditions and customer requirements.

Reliable transmission system
The loader is equipped with a fixed-shaft Beilian transmission and Shantui torque converter, ensuring smooth power delivery, excellent overload adaptability, and simple maintenance. This configuration supports continuous, stable operation even under harsh working conditions in mining and quarry environments.
