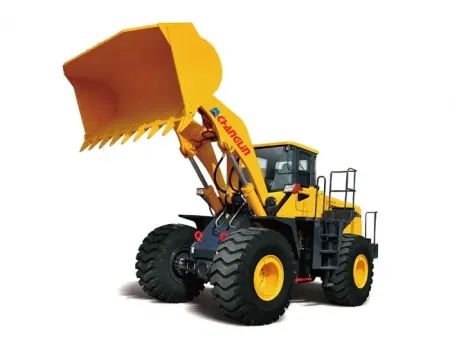

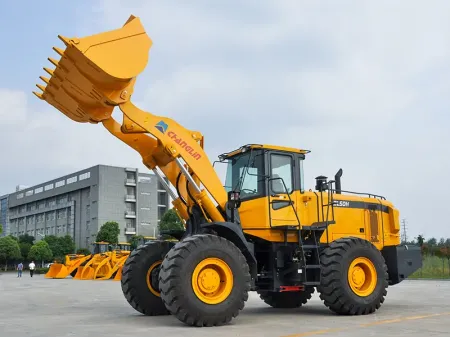

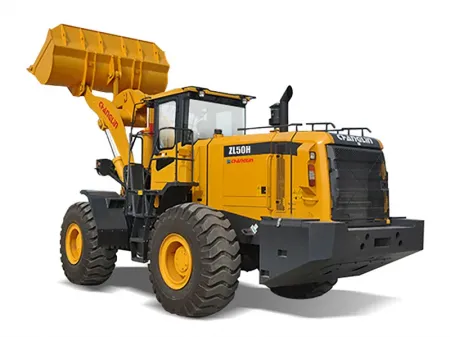

ZL50H Wheel Loader
Featuring a 3300 mm wheelbase, this wheel loader delivers the stability and performance expected from mid-to-high-end models in the industry. It’s engineered for demanding applications like mining and construction, equipped with a 162 kW direct injection engine from Cummins or Shangchai that delivers a peak torque of 940 N·m. The standard 3.1 m³ bucket can be upgraded to 4.5 m³, offering both efficiency and durability across a wide range of heavy-duty tasks.
- Length (with bucket on ground) 8390 mm
- Operating weight 17300 kg
- Rated bucket capacity 3.1 m³
Equipped with a 3-speed forward and 3-speed reverse power-shift transmission, providing 160 kN of traction force and quick response over complex terrain.
Uses a dual-pump converging system with a split-flow cooling design to keep hydraulic oil temperature under 85 °C and stabilize pressure at 18 MPa, increasing continuous operation lifespan by 25%.
Features a third-generation one-piece frame and conical roller bearing articulation, offering 450 mm ground clearance and outstanding torsional resistance for improved mobility.
The fully enclosed cab keeps noise levels below national standards. External grease fittings and centralized pressure ports make maintenance 40% more efficient.
Fitted with dual caliper disc brakes handle both travel and parking functions with brake air pressure between 6 and 7.5 kgf/cm², ensuring reliable safety even under harsh working conditions.
Overall Dimensions
- Length (with bucket on ground) 8390mm
- Width (to outside of wheels) 2800mm
- Bucket width 2928mm
- Height (to the top of the cab) 3450mm
- Wheel base 3300mm
- Min. ground clearance 450mm
Performance
- Rated load 5000kg
- Operating weight 17300kg
- Rated bucket capacity 3.1m³, (optional 2.2-4.5m³)
- Max. dump clearance 3136mm
- Dump reach 1121mm
- Min. turning radius (wheel) 6192mm
Diesel Engine
- Model Cummins
- Type Direct injection
- Rated output 162kW
- Displacement 9.3L
- Rated speed 2200r/min
- Max. torque 940N.m@1400rpm
