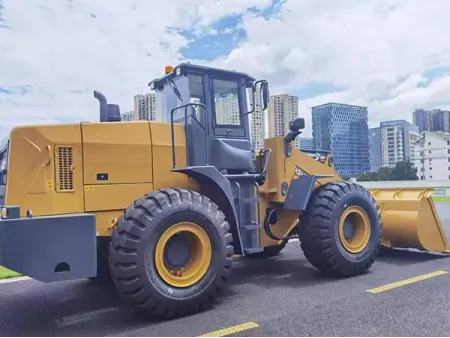

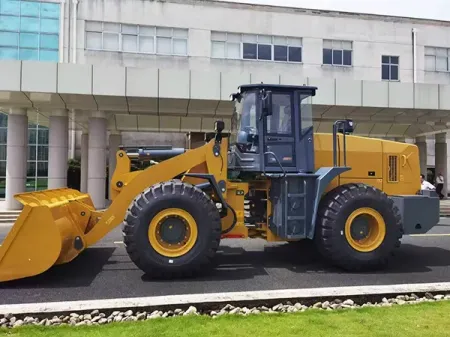

ST958H Wheel Loader
Request a Quote
Front end loader with diesel engine for construction sites, mines and quarries
- Rated load
5,000kg - Bucket capacity
3m³ - Max. dumping height
3300mm - Max. dumping reach
1400mm
The ST958H wheel loader is engineered for high-demand applications, combining power, safety, and operational flexibility. Its braking system features four-wheel air-hydraulic disc brakes and an exhaust brake, ensuring strong braking force, smooth response, and enhanced safety. The dual-pump converging hydraulic system allows greater engine power to be directed toward breakout and lifting functions when steering is not in use, improving overall efficiency.
Specifications
| Rated load | 5,000kg |
| Bucket capacity | 3m³ |
| Max. dumping height | 3300mm |
| Max. dumping reach | 1400mm |
| Operating weight | 17,100kg |
| Engine model | Weichai WD10G220E23 |
| Optional: Shangchai SC11CB220G2B1 or Cummins 6CTA8.3-C215 | |
| Rated power | 162kW |
| Rated rotate speed | 2000r/min |
| Max. torque | ≥745.3N.m |
| Breakout force | 145kN |
| Driving speed | |
| Forward Ⅰ | 0-11.5km/h |
| Forward Ⅱ | 0-38km/h |
| Reverse Ⅰ | 0-16km/h |
| Gradeability | 28° |
| Overall length | 7950mm |
| Overall width | 2870mm |
| Overall height | 3500mm |
| Bucket width | 3000mm |
| Wheelbase | 3300mm |
| Track width | 2260mm |
| Min. ground clearance | 470mm |
| Hydraulic torque converter | Single stage, 4 elements |
| Transmission | Planetary type |
| Raise cycle time | ≤6.8s |
| Total cycle time | ≤12.5s |
| Tire type | 23.5-25 20PR |
Note:
With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.
Features
- Central articulated frame provides a small turning radius and stable maneuverability, ideal for operation in confined or narrow job sites
- Full-hydraulic steering, power shift transmission, and hydraulic control system combined with a lightweight design deliver responsive control and adaptability across varied working conditions
- High-strength wear-resistant bucket enhances durability and extends service life
- Low-pressure wide bias tires provide excellent off-road capability and improved ground traction for challenging terrain
