32mm 10W/15W Brush DC Planetary Gear Motor Manufacturer

32mm 10W/15W Brush DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-1-1-brush-planetary-gear-motor.html

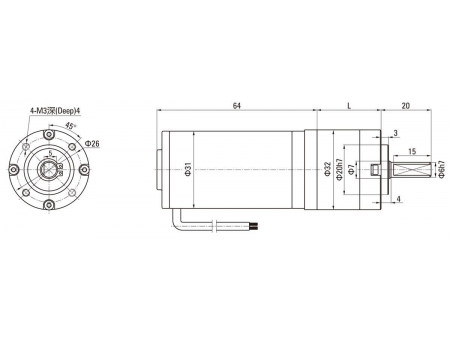

Motor Specifications

Motor Model	Gearbox Model	Gear Ratio		Dimension (mm)
Z32DPN	32ZPN()	Stage 1	3.7～6.75	25.6
		Stage 2	14～46	35.9
		Stage 3	51～308	46.2

Brush DC Motor Technical Data

Motor Model	Voltage V	Power W	No-load Current A	No-load SpeedRPM	Rated Current A	Rated Speed RPM	Rated TorqueN.m	Motor Life H
Z32DPN2410-40S	24	10	0.4	5000	0.7	4000	0.024	2000
Z32DPN2415-50S	24	15	0.5	6000	1.1	5000	0.029	2000

Brush DC Planetary Gear Motor Technical Data

Gear Ratio	3.7	5.18	6.75	13.73	19.2	25	28.93	34.97	45.56	50.89	68.08	78.7	92.7
Output Shaft Speed r/min	1081	932	772	592	285	210	160	137	114	87	78	59	50
Allowance Torque N.m	0.080	0.092	0.111	0.145	0.270	0.367	0.483	0.561	0.6777	0.890	0.889	1.185	1.3777
Reduction Stage	1	1	1	1	2	2	2	2	2	2	3	3	3

Gear Ratio	99.5	115.1	129.6	149.9	168.85	195.28	236.1	307.54
Output Shaft Speed r/min	43	40	35	31	26	23	20	17	13
Allowance Torque N.m	1.621	1.743	2.004	2.266	2.614	2.945	3.400	4.000	4.000
Reduction Stage	3	3	3	3	3	3	3	3	3
