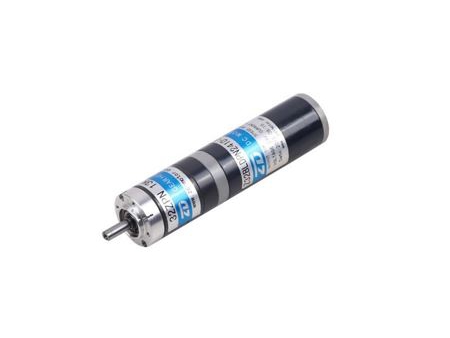

32mm 25W Brushless DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-2-1-brushless-planetary-gear-motor.html

Motor Specifications

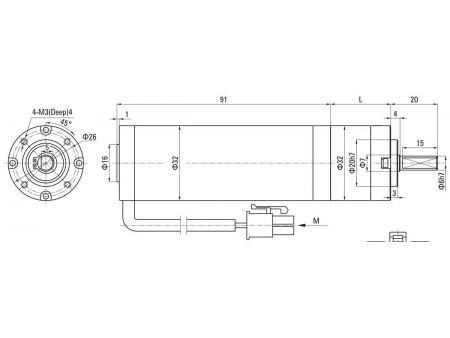

Motor Model	Gearbox Model	Gear Ratio	Dimension (mm)
Z32BLDPN	32PN()	3.7～6.75	25.6
		13.73～45.56	35.9
		50.89～307.54	46.2

BLDC Motor Technical Data

Motor Model	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated TorqueN.m	IP Ratings
Z32BLDPN2420-40S	24	20	1.3	4000	0.048	20

BLDC Planetary Gear Motor Technical Data

Gear Ratio	3.7	5.18	6.75	13.73	19.2	25	28.93	34.97	45.56	50.89	68.08	78.7	92.7
Output Shaft Speed r/min	1081	772	593	291	208	160	138	114	88	79	59	51	43
Allowance Torque N.m	0.16	0.22	0.29	0.53	0.74	0.97	1.12	1.35	1.76	1.77	2.37	2.74	3.23
Reduction Stage	1	1	1	2	2	2	2	2	2	3	3	3	3

Gear Ratio	99.5	115.1	129.6	149.9	168.85	195.28	236.1	307.54
Output Shaft Speed r/min	40	35	31	27	24	20	17	13
Allowance Torque N.m	3.47	4.00	4.00	4.00	4.00	4.00	4.00	4.00
Reduction Stage	3	3	3	3	3	3	3	3
