60mm 15W Brush DC Gear Motor Manufacturer

60mm 15W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-3-brush-dc-gear-motor.html

Motor Specifications

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
72015-12	12	15	3200	0.8Max.	2950	48	2.0	2000	0.9
Z2DW15-12	12	15	3200	0.8Max	2950	48	2.0	2000	0.9
Z2015-24	24	15	3300	0.4Max.	3000	48	1.0	2000	0.9
Z20W15-24	24	15	3300	0.4Max.	3000	48	1.0	2000	0.9
Z2015-90	90	15	3200	0.2Max.	3000	48	0.4	2000	0.9
Z2DW15-90	90	15	3200	0.2Max.	3000	48	0.4	2000	0.9

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z2D15-24GN	Speed r/min	1000	833	600	500	400	333	300	240	200	167	150	120	100	83	75	60	50	40	33	30	25	20	17	15
	2GN()K	0.12	0.14	0.19	23	0.29	0.35	0.39	0.48	0.58	0.70	0.70	0.87	1.04	1.25	1.39	1.74	1.88	2.35	2.82	3.00	3.00	3.00	3.00	3.00
	2GN()K	1.14	1.36	1.90	2.27	2.84	3.41	3.79	4.74	5.69	6.82	6.82	8.53	0.23	2.28	13.65	17.1	18.4	23.0	27.6	30.0	30.0	30.0	30.0	30.0

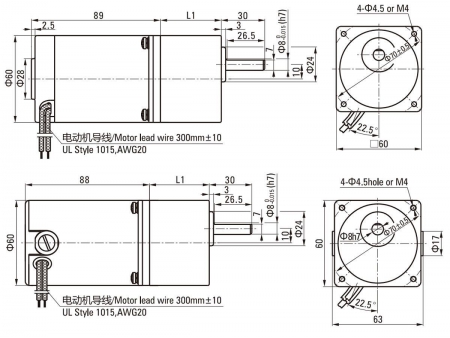

L1=41mm
