High Speed 4/6 Color Flexographic Printing Machine

Request a Quote

View All: http://plastic-bagmachines.com/3-1-1-high-speed-46-color-flexographic-printing-machine.html

CI Flexo Press for Film Printing

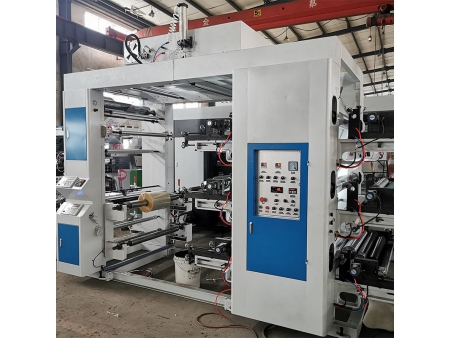

High Speed Six-Color Flexographic Printing Machine

Video

Technical Parameters

Model	YT-6600	YT-6800	YT-61000	YT-61200
Max.width of printing material (mm)	600	800	1000	1200
Max. printing width (mm)	560	760	960	1160
Product length (mm)	191-1200	191-1200	191-1200	191-1200
Max. diameter of roll material (mm)	Ø450	Ø450	Ø450	Ø450
Printing speed (m/min)	70	70	70	70
Accuracy (mm)	±0.25	±0.25	±0.25	±0.25
Thickness of flexible plate (two-sided adhesive paper included, mm)	2.38	2.38	2.38	2.38
Total power (kW)	10	10	11	11
Weight (kg)	3500	4200	5000	5500
Dimensions(mm)	5500×1660×2950	5500×1860×2950	5500×2060×2950	5500×2260×2950

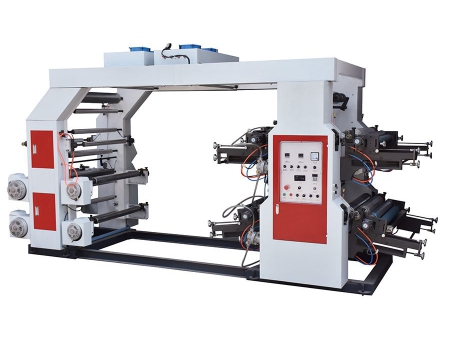

Four-Color Flexography Printing Machine

Technical Parameters

Model	YT-4600	YT-4800	YT-41000	YT-41200
Max. effective printing width (mm)	560	760	960	1160
Max. web width (mm)	600	800	1000	1200
Max. printing speed (m.min)	70	70	70	70
Max. mechanical speed (m/min)	80	80	80	80
Max. diameter of roll material (mm)	ф450	ф450	ф450	ф450
Roll material inner diameter (mm)	ф76	ф76	ф76	ф76
Repeated length (mm)	191-1200	191-1200	191-1200	191-1200
Accuracy (mm)	±0.25	±0.25	±0.25	±0.25
Thickness of flexible plate (two-sided adhesive paper included, mm)	2.38	2.38	2.38	2.38
Power of heater (kW)	8	9	10	12
Total power (kW)	11.5	15	18.5	22
Weight (kg)	3000	3500	4000	4500
Dimensions(mm)	L4300×W1700× H2500	L4300×W1900× H2500	L4300×W2100× H2500	L4300×W2300× H2500

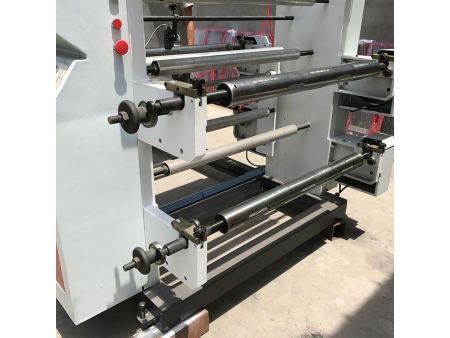

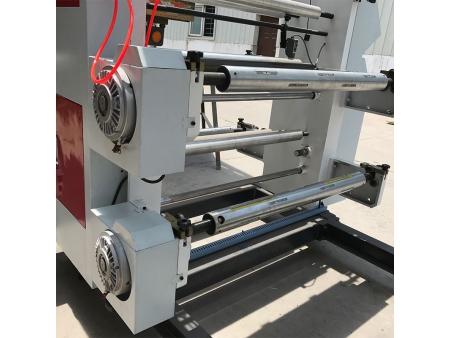

Standard Unwinder and Rewinder

Double unwinder & rewinder: Switching between rolls of material is an easy and time-saving task

5kg automatic tension brake

Tension sensor

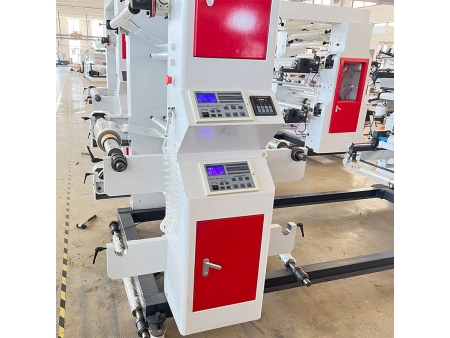

Automatic tension controller
Automatically change the tension accordingly.

Air shaft: An air shaft with a diameter of 76mm is ideal for use on a rewinder or unwinder, providing an easy way to change rolls.

EPC motor: high-precision motor to create highly consistent and even printed materials.

EPC sensor: renowned for its superior quality in China, providing unbeatable accuracy.

Printing System

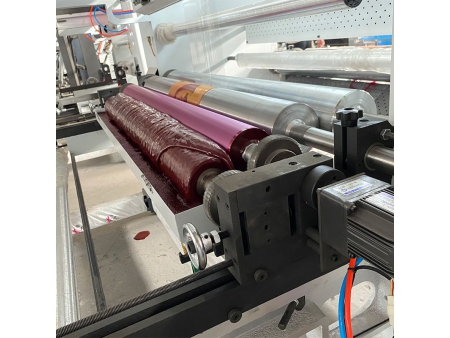

Doctor blade: metal doctor blades are utilized to ensure an even application of ink onto an anilox roller, delivering a smooth and consistent result.

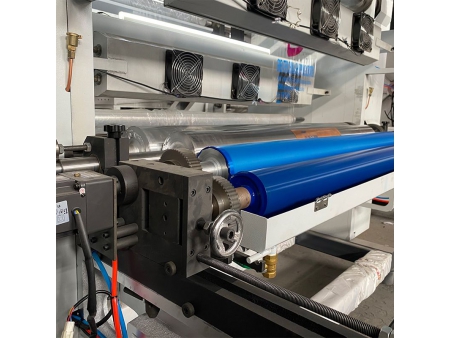

Anilox Roller: Anilox Rollers are crafted from steel and feature a maximum line screen of 320LPI with a hexagonal design for maximum ink carry. Designed specifically for printed images, Anilox Rollers provide optimal results for all types of printing.

Separate motor for ink roller: A motor for ink roller is independently provided and will start automatically when the machine is not in use. This ensures that ink flow is maintained and no drying up of ink occurs.

Adjust Bar: Robust steel adjust bar.

Ink pump: Automatic ink pump frees human labour.

Oil lubrication system: decreasing noise generated, as well as an increase in smooth and efficient operation.

Hydraulic lifting system: provide far more stability than pneumatic counterparts

Transferring System

Synchronous belt This precise printing has a resolution of 0.25mm and runs with significantly reduced noise levels.

Helical gear This printer offers top-notch printing with its high-precision helical gearing providing exceptional quality results.

NSK Bearing The renowned Best Brand in Japan is renowned for its long-term performance and endurance, providing users with more than 10 years of efficient and reliable use.

Drying System

Separate heater
Used to dry up ink faster

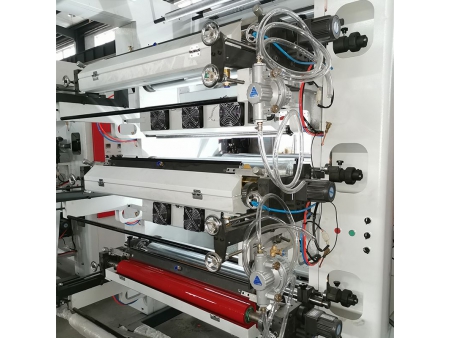

The upper drying system has a hot and cold drying section, which enables it to operate at 70m/min while effectively drying the printing ink.
