High Speed Flexo Printing Machine
Request a Quote
Video
Our newly developed high speed flexo printing machine features a thicker steel plate construction for improved stability, ensuring precise printing results.
The photocell can capture printed images clearly, thus allowing us to assess print quality swiftly.
An automated registration system controlled by a motor is utilized to simplify color adjustments, eliminating the need for manual labor. This system allows for the adjustment of color to be done directly from a computer.
Technical Parameters
| Model | YTB-600 | YTB-800 | YTB-1000 | YTB-1200 |
| Max. effective printing width (mm) | 560 | 760 | 960 | 1160 |
| Max. web width (mm) | 600 | 800 | 1000 | 1200 |
| Max. printing speed (m.min) | 80-100 | 80-100 | 80-100 | 80-100 |
| Max. mechanical speed (m/min) | 110 | 110 | 110 | 110 |
| Max. diameter of roll material (mm) | Ф650 | Ф650 | Ф650 | Ф650 |
| Roll material inner diameter (mm) | ф76 | ф76 | ф76 | ф76 |
| Repeated length (mm) | 191-914 | 191-914 | 191-914 | 191-914 |
| Accuracy (mm) | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Thickness of flexible plate (two-sided adhesive paper included, mm) | 2.38 | 2.38 | 2.38 | 2.38 |
| Power of heater (kW) | 15 | 20 | 23 | 28 |
| Total power (kW) | 25 | 30 | 35 | 40 |
| Weight (kg) | 4500 | 4800 | 5000 | 5500 |
| Dimensions(mm) | 5.5×1.7×2.5 | 5.5×2×2.5 | 5.5×2.1×2.5 | 5.5×2.3×2.5 |

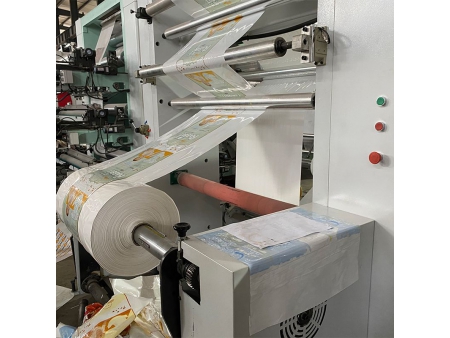

Standard Unwinder & Rewinder
- Double unwinder & rewinder: Hydraulic unwinder and friction rewinder
- 5kg automatic tension brake
- Tension sensor
- Automatic tension controller
Printing System

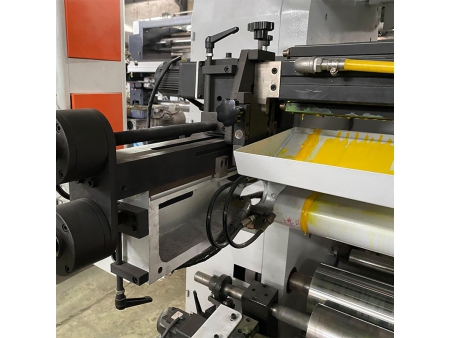

- Doctor Blade and Anilox Roller. We employ Japan-manufactured doctor blades and anilox rollers, which produces results that are even in terms of ink distribution.
- Adjust the plate roller using the motor. The motor controls all the rollers.
- Printing parts: with popular design and high flexibility

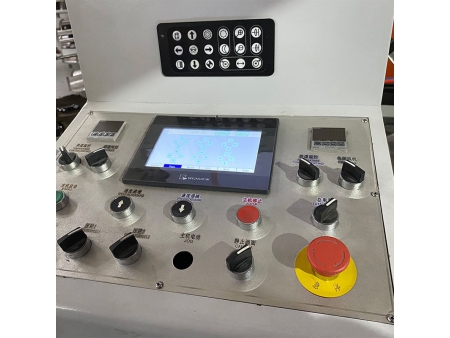

- Eletrical components: PLC control and cameras
