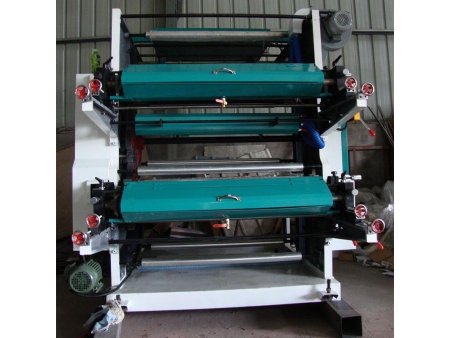

CI Flexo Press for Film & Paper Printing

This 2 color flexographic printing machine uses sensitization resin in its printing plate for high flexibility, making it ideal for many packaging materials, including polyethylene, polypropylene bags, cellophane and paper roll. This flexo printing machine is perfect for making plastic and paper food bags, supermarket bags, vest bags, and clothing bags, among other items.

Technical Parameters
Model
YT-2600
YT-2800
YT-21000
YT-21200
Max. effective printing width (mm) 560 760 960 1160
Max. web width (mm) 600 800 1000 1200
Max. printing speed (m.min) 60 60 60 60
Max. mechanical speed (m/min) 70 70 70 70
Max. diameter of roll material (mm) 450 450 450 450
Roll material inner diameter (mm) 76 76 76 76
Repeated length (mm) 191-1200 191-1200 191-1200 191-1200
Accuracy (mm) ±0.25 ±0.25 ±0.25 ±0.25
Thickness of flexible plate (two-sided adhesive paper included, mm) 2.38 2.38 2.38 2.38
Power of heater (kW) 4 6 8 10
Total power (kW) 8 10 12 12
Weight (kg) 1800 200 2200 2400
Dimensions(mm) 2.5*1.7*2.2 2.5*1.9*2.2 2.5*2.1*2.2 2.5*2.3*2.2
Main part
  • Unwinder & Rewinder 1. Single unwinder & rewinder
    2. 5kg automatic tension brake
    3. Tension sensor (optional)
    4. Auto tension controller (optional)
    5. Air shaft: 76mm (optional)
    6. EPC motor (optional)
    7. EPC sensor (optional)

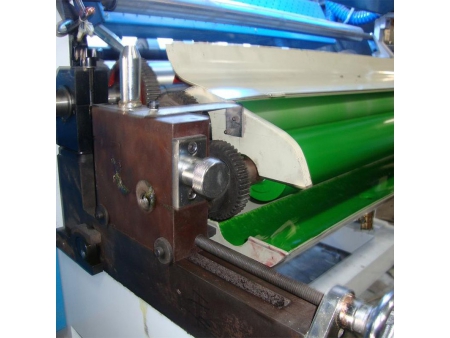

  • Printing System 1. Doctor blade (optional)
    2. Anilox roller

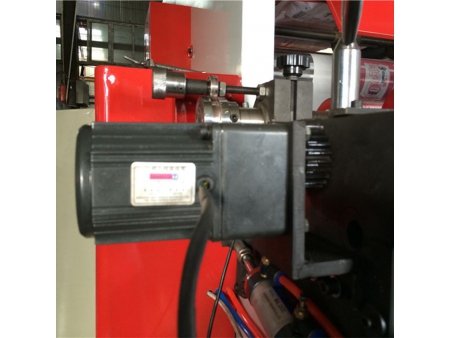

    3. Separate motor for ink roller.
    4. Adjust bar, hard screw
    5. Ink pump (optional)
    6. Oil lubrication system
    7. Hydraulic lifting system (optional)
  • Transfer System 1. Synchronous belt
    2. Extremely robust helical gear
    3. NSK bearing

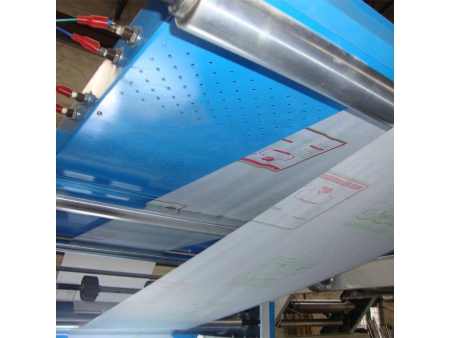

  • Drying System 1. Separate drying heaters
    2. Up drying system
