There is a yellow push lock on the operation handle of the 3 pole 3 position selector switch. Customers can push it upward to lock the position when not using the switch.

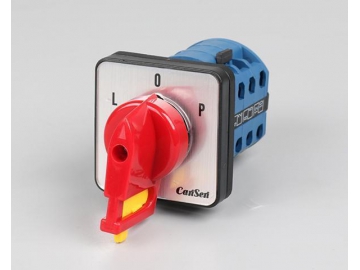

LW26-20 L-O-P, FOR-OFF-REV (61211)
General Information
- Rated working current: 20A
- Panel: 48*48mm
- Diagram code: L-O-P/FOR-OFF-REV (61211)
- Color: Blue/black/white
- Handle: Push padlock type
- IP rating: IP20
- Layer: 3
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||

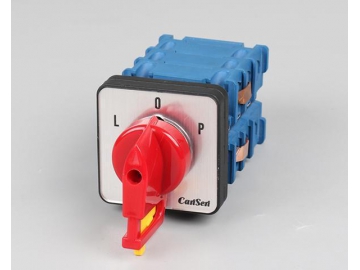

LW26-20(X) L-O-P,FOR-OFF-REV (61211)
- Rated working current: 20A
- Panel: 48*48mm
- Diagram code: L-O-P/FOR-OFF-REV (61211)
- Color: Blue/black/white
- Handle: Push padlock type
- IP rating : IP20
- Layer: 3
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20(X) | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||

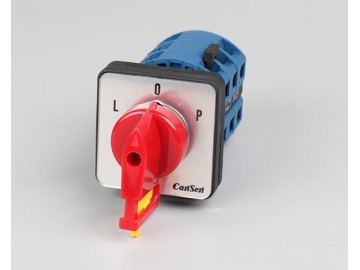

LW26-25 L-O-P,FOR-OFF-REV (61211)
- Rated working current: 25A
- Panel: 48*48mm
- Diagram code: L-O-P/FOR-OFF-REV (61211)
- Color: Blue/black/white
- Handle : Push padlock type
- IP rating : IP20
- Layer: 3
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-25 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 25 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 25 | 25 | ||
| AC-23A | 22 | 22 | ||
| AC-2 | 22 | 22 | ||
| AC-3 | 15 | 15 | ||
| AC-4 | 6.5 | 6.5 | ||
| AC-15 | 8 | 5 | ||
| DC-13 | 20 | 0.5 | 0.5 | |
| Power | ||||
| AC-23A | 5.5/3 | 11/5.5 | ||
| AC-2 | 5.5 | 11 | ||
| AC-3 | 4/3 | 7.5/3.7 | ||
| AC-4 | 1.5/1.1 | 3/2.2 | ||
