42mm 25W Brush DC Planetary Gear Motor Manufacturer

42mm 25W Brush DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-1-2-brush-planetary-gear-motor.html

Motor Specifications

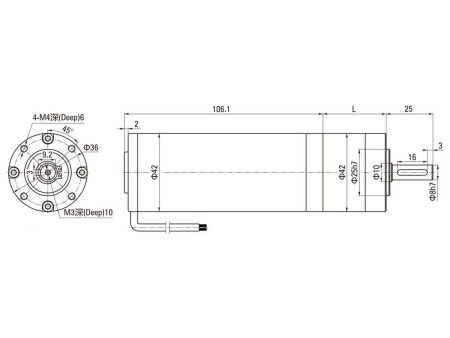

Motor Model	Gearbox Model	Gear Ratio	L(mm) Dimension
Z42DPN	42PN()	3.65～8.63	33.8
		13.53～58.22	47.4
		67.08～392.98	61.0

Brush DC Motor Technical Data

Motor Model	Voltage V	Rated Power W	No-load Current A	No-load SpeedRPM	Rated Current A	Rated Speed RPM	Rated TorqueN.m	Motor Life H
Z42DPN2425-30S	24	25	0.6	3500	1.6	3000	0.080	600

Brush DC Planetary Gear Motor Technical Data

Gear Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output Shaft Speed r/min	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowance Torque N.m	0.26	0.39	0.47	0.62	0.88	1.23	1.60	1.82	2.20	2.90	3.77	2.75	4.74
Reduction Stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Gear Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output Shaft Speed r/min	33	29	25	24	21	18	16	13	9.9	7.6
Allowance Torque N.m	5.34	6.01	6.95	7.46	8.49	9.67	11.19	13.53	15.00	15.00
Reduction Stage	3	3	3	3	3	3	3	3	3	3
