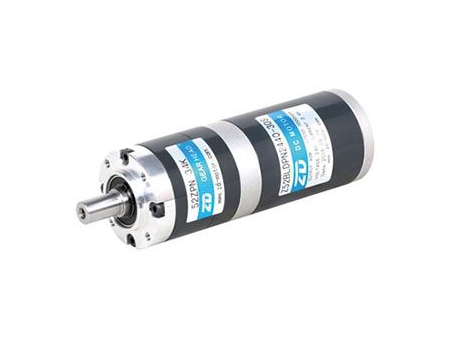

42mm 40W Brushless DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-2-2-brushless-planetary-gear-motor.html

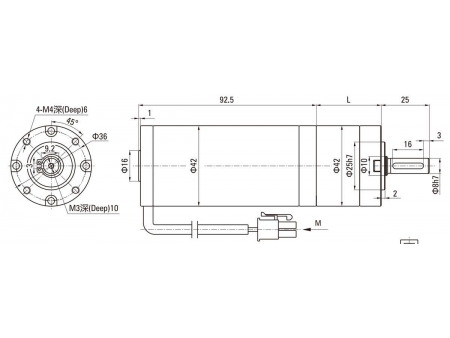

Motor Specifications

Motor Model	Gearbox Model	Gear Ratio	Dimension (mm)
Z42BLDPN	42PN()	3.65～8.63	33.8
		13.53～58.22	47.4
		67.08～392.98	61.0

BLDC Motor Technical Data

Motor Model	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated TorqueN.m	IP Ratings
Z42BLDPN2440-30S	24	40	2.4	3000	0.127	20

BLDC Planetary Gear Motor Technical Data

Gear Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output Shaft Speed r/min	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowance Torque N.m	0.42	0.61	0.75	0.99	1.40	1.95	2.54	2.89	3.50	4.61	6.00	6.24	7.54
Reduction Stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Gear Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output Shaft Speed r/min	33	29	25	23	21	18	16	13	10	8
Allowance Torque N.m	8.49	9.55	11.06	11.87	13.51	15.0	15.0	15.0	15.0	15.0
Reduction Stage	3	3	3	3	3	3	3	3	3	3
