Flat Bed Die Cutting Machine, DBMQ-320

Flat Bed Die Cutting Machine, DBMQ-320
Flat Bed Die Cutting Machine, DBMQ-320
Flat Bed Die Cutting Machine, DBMQ-320
Flat Bed Die Cutting Machine, DBMQ-320
Flat Bed Die Cutting Machine, DBMQ-320
Request a Quote

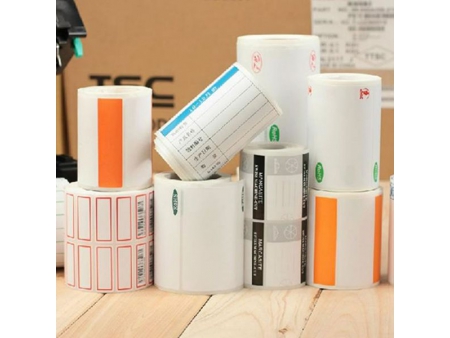

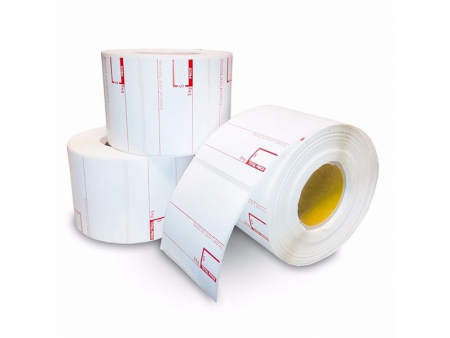

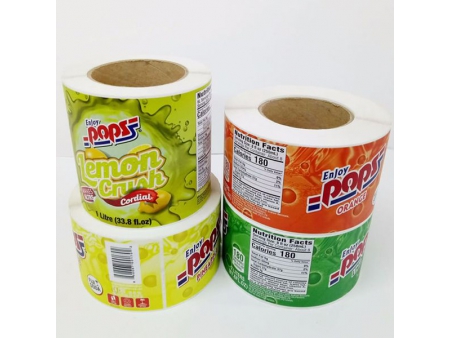

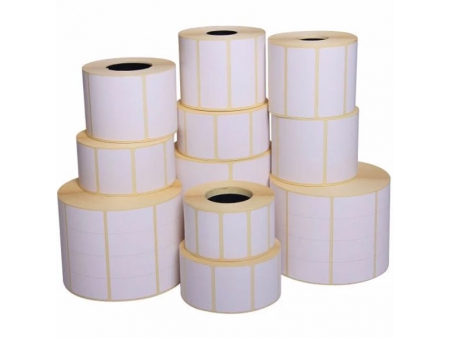

Label converting machine

Daba Machinery offers a flat bed high-precision die cutting machine. Material feeding and slicing are computer-controlled. Three photoelectric sensors accurately track and position on both sides and vertically for printing. The die cutting machine completes lamination, die-cutting, waste removal, slicing, or rewinding in one go, perfect for die-cutting in fields like flexo printing, screen printing, gravure, and label printing. The flat bed high-precision die cutting machine is a ideal high-efficiency model for various label printing factories.

Applicable Materials

Adhesive tapes, non-woven fabrics, mica sheets, insulation materials (kraft paper, PVC, PET), etc.

Specifications
Model
DBMQ-320A
DBMQ-320B
DBMQ-320C
Maximum Unwinding Diameter 500mm 500mm 500mm
Maximum Unwinding Width 320mm 320mm 320mm
Maximum Slitting Width 310mm 310mm 310mm
Slitting Speed 180 times/min 250 times/min 300 times/min
Accuracy ±0.10mm ±0.10mm ±0.10mm
Total Power 5.5kW 5.5kW 5.5kW
Weight About 1700kg About 1700kg About 1700kg
Dimensions (L*W*H) 2600*1350*1400 (mm) 2600*1350*1400 (mm) 2600*1350*1400 (mm)
Features
  • Precision flat bed die-cutting with accuracy of ±0.10mm.
  • Computer-controlled die-cutting and waste removal for high precision.
  • Three optical sensors for tracking both sides of the substrate.
