Flat Bed Label Die Cutting Machine (WQM-320G/ WQM-420)
Request a Quote
- Cutting speed 20-210 (rpm/min)
- Max.web width 320/420mm
Features
- High precision
The flat bed label die cutting machine is configured with triple photoelectric eyes for label positioning, material feeding system controlled by computer and high precision flat die cutting system. - Easy operation
It can finish the die cutting, waste rewinding and finished product rewinding in one process. - Wide range of applications
Our flat bed label die cutting machine is especially suitable for die cutting of adhesive label, Dacron label, hologram label and so on.
This product is the ideal associated equipment for the flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine. Moreover, it is the most efficient machine for printing house.
Technical Specifications
| Model | WQM-320G | WQM-420 |
| Cutting speed | 20-220 (rpm/min) | 20-210 (rpm/min) |
| Max.unwinding diameter | 500mm | 500mm |
| Max.web width | 320mm | 420mm |
| Max.die-cutting width | 300mm | 400mm |
| Max.die-cutting length | 300mm | 400mm |
| Accuracy | ±0.15mm | ±0.15mm |
| Total power | 3.5kw | 4.5kw |
| Power supply | 220v±10% | 380v |
| Machine weight | (about)1700kgs | (about)2300kgs |
| Dimensions(L×W×H) | 2.6x0.99x1.4mm | 2.95×1.35×1.4mm |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | WQM-320G |
| Working style | Die cutting head works from up to down |
| Productivity | 50sets per month |
| H.S. Code | 84411000 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
- Hot stamping unit
- Lamination system
- Hole Punching device

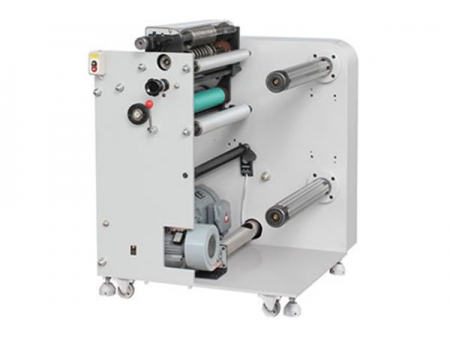

- Inline slitting and rewinding device
- Flat bed magnetic based

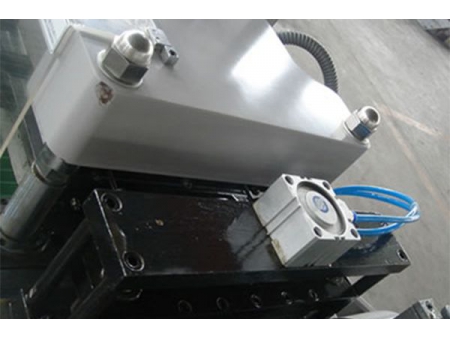

Details
