Tabletop Gem Spectroscope, FTS-50 Manufacturer

Tabletop Gem Spectroscope, FTS-50

Request a Quote

View All: http://gemtesting-en.com/3-1-gem-spectroscope.html

Length	234mm
Width	168mm
Height	110mm
Net weight	3.78kg
Built-in digital scale	400-700nm
Packaging	Foam-padded export-grade cardboard box

Features

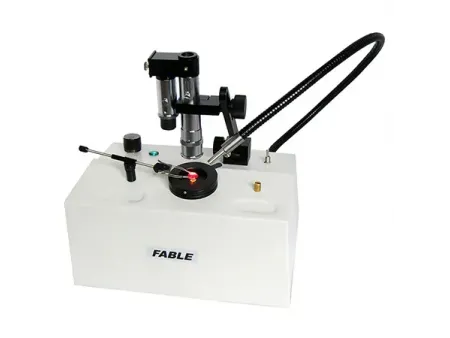

Comes with a dedicated base that includes a gemstone holder and integrated light source for stable operation.
Features a dual-light source system, allowing both reflection and transmission observation for more detailed gemstone analysis.
Equipped with a built-in scale, along with adjustable focus, scale positioning, and light intake control to enhance measurement precision.
High-resolution dual-tube design with an engraved scale for easy reading. The white-coated base gives a refined and professional appearance

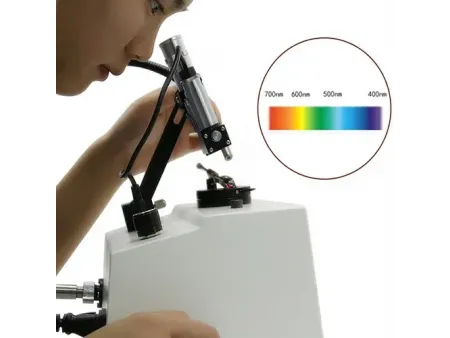

Triple-prism imaging system
Non-uniform wavelength spectrum, enhancing the visibility of darker blue-violet regions.

The spectral bands are unevenly spaced, with the blue-violet region appearing wider and the red region compressed.
Higher transmission for a brighter spectral display.
Resolution in the red spectrum is slightly lower than in the blue-violet region. The focal distance may vary slightly depending on the gemstone’s color.

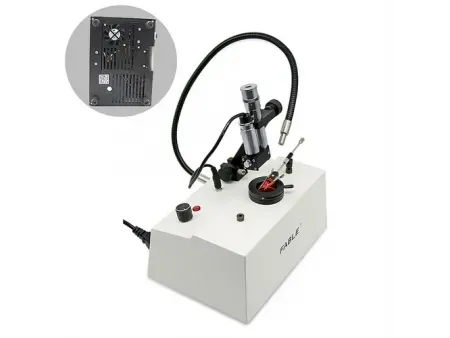

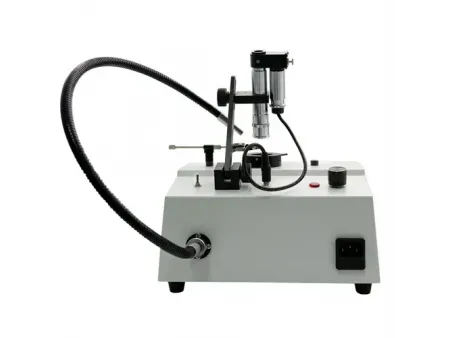

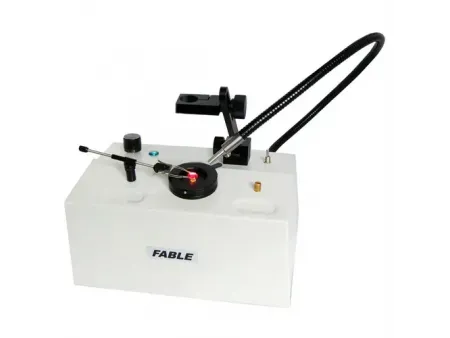

Tabletop Spectroscope Base

Specifications

Designed for spectroscopic testing, featuring a continuous-spectrum high-intensity white light source.
Dual adjustable lamp system:

12V/50W high-intensity halogen cold light lamp, offering strong transmission and reflection illumination.
Efficient cold light output, reducing heat exposure to the optical fiber tube.

Fully modular electrical system, making maintenance more convenient.
600mm high-temperature-resistant self-locking optical fiber tube, ensuring precision and durability.
Integrated cooling fan, enabling extended operation without overheating.
Adjustable light aperture: Φ2mm to Φ28mm, supporting various sample sizes.
Versatile functionality: Can function as both a spectroscope light source and a fiber optic light source.
Dual sample grooves, for easy gemstone placement.
Dedicated lens mount, ensuring precise and effortless adjustments.
Quick and secure lamp replacement system, making maintenance fast and safe.
Ergonomic design, with gemstone holder installation slots on both sides.
Magnetic universal gemstone holder base, providing stability and flexibility.
Input voltage: 220V wide-range voltage compatibility.
