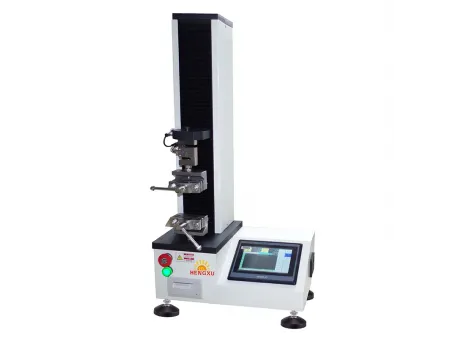

Tabletop Touch Screen Tensile Testing Machine

Tabletop Touch Screen Tensile Testing Machine
Tabletop Touch Screen Tensile Testing Machine
Request a Quote
HDS

Vertical universal tensile tester for assessing the tensile properties of paper, plastic, textile, cable and other metal and non-metal products

Standards Compliance
These testing machines adhere to ASTM and ISO standards, ensuring that it meets international requirements for tensile and mechanical testing across a variety of materials.

Applications
Suitable for a wide range of materials, including paper, plastics, rubber, textiles, waterproof materials, wires, cables, nets, metal wires, rods, plates, and composite materials. It’s ideal for industries needing to assess the mechanical properties of these materials under varying conditions.

The design of the HDS-C touch screen electronic universal testing machine integrates advanced testing equipment control technology and exterior design. The AC servo speed control motor and AC digital servo speed control system should be used as the driving device. After deceleration by the circular arc synchronous belt and circular arc synchronous belt wheel reduction system, the precision ball screw pair is loaded to complete various mechanical performance tests of the sample. Our vertical universal tensile testers are designed to handle more than just tensile tests. By simply switching out the fixtures, they can also perform a wide range of additional tests, including compression, bending, shearing, tearing, peeling, and puncture tests, making them versatile tools for assessing the mechanical properties of a wide variety of materials.

Technical Specifications

Max. test force 20/50/100/200/500N (optional)
Measurement range 1N-500N
Relative accuracy of test force Better than ±1%
Displacement resolution 0.001mm
Displacement measurement accuracy Better than ±1%
Tensile stroke 300mm
Compression stroke 300mm
Test stroke 300mm
Displacement speed control range 0.1-300mm/min (standard configuration)
Displacement speed control accuracy Better than 1%
Dimensions (L×W×H) 480×280×1180mm
Protection function Overload protection
Power supply 220V, 50Hz
Weight 150kg

Features

  • Equipped with a high-precision digital speed control system and precision reducer, enabling a wide range of test speeds with low noise and stable performance throughout the testing process
  • Features a cross-pin structure in the universal joint, which makes sample clamping easier while maintaining test concentricity, and minimizes the effects of irregular samples on the sensor, ensuring consistent results
  • The machine allows for quick and easy adjustment of the crossbeam for sample clamping, with built-in protections against overcurrent, overvoltage, and overload to safeguard the system during long testing periods
