Two Core to Five Core Heat Shrink Cable Terminations up to 1kV

1kV heat shrinkable cable terminations are made primarily of EVA with a small volume and light weight. They are suitable for cable terminations with a voltage of 0.6-1kV, and offer insulation protection that is extremely durable.

During usage, users need to heat the heat shrink termination to around 120℃, and from there, it will quickly shrink. The hot melt-adhesive on the inner layer will adhere to the cable while being heated, and create a seal for an easy process.

Optional type

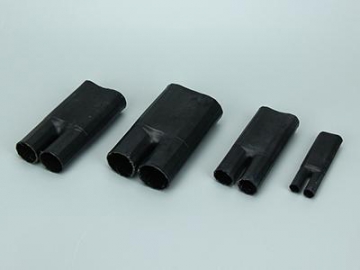

2 – core heat shrinkable terminal

Type and specification	Cross sectional area of applicable cable (mm²)
SY-1/2.0	10-16
SY -1/2.1	25-50
SY -1/2.2	70-120
SY-1/2.3	150-240
SY -1/2.4	300-500

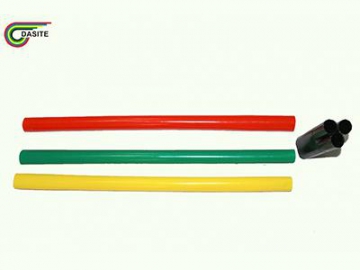

3– core heat shrinkable terminal

Type and specification	Cross sectional area of applicable cable (mm²)
SY -1/3.0	10-16
SY -1/3.1	25-50
SY -1/3.2	70-120
SY -1/3.3	150-240
SY -1/3.4	300-500

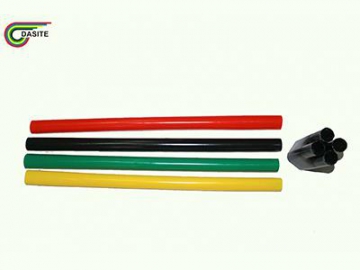

4-core heat shrinkable terminal

Type and specification	Cross sectional area of applicable cable (mm²)
SY -1/4.0	10-16
SY -1/4.1	25-50
SY -1/4.2	70-120
SY -1/4.3	150-240
SY -1/4.4	300-500

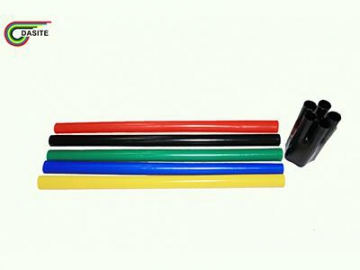

5-core heat shrinkable terminal

Type and specification	Cross sectional area of applicable cable (mm²)
SY -1/5.0	10-16
SY -1/5.1	25-5
SY -1/5.2	70-120
SY -1/5.3	150-240
SY -1/5.4	300-500

Property test chart

Item	Test condition
West state power frequency withstard voltage test	4kv, 1min
4h state power frequency withstard voltage test	2.4kv, 4h
