Cold Shrink Cable Joint Two Core to Five Core up to 1kV
Request a Quote

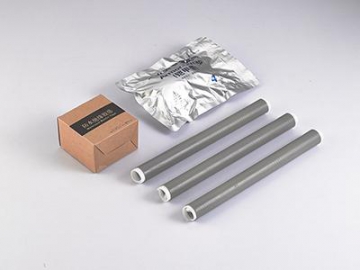

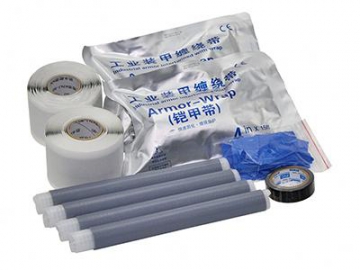

1kV cold shrink cable joints are made of silicon rubber with an excellent elasticity and insulation property. When using, simply remove the inner plastic tube, and the cable joint will shrink with no heat required, making it safer to use.
We offer two core, three core, four core, and five core 1kV cold shrink joints which are widely used in a variety of cables with a voltage of 0.6-1kV that are often used in household appliances, automotive industries, and industrial equipment.
Product index
2-core cold shrinking intermediate joint| Type and specification | Cross sectional area of applicable cable (mm2) |
| JLS-1/2.0 | 10-16 |
| JLS -1/2.1 | 25-50 |
| JLS -1/2.2 | 70-120 |
| JLS -1/2.3 | 150-240 |
| JLS -1/2.4 | 300-400 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| JLS -1/3.0 | 10-16 |
| JLS -1/3.1 | 25-50 |
| JLS -1/3.2 | 70-120 |
| JLS-1/3.3 | 150-240 |
| JLS -1/3.4 | 300-400 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| JLS -1/4.0 | 10-16 |
| JLS -1/4.1 | 25 ― 50 |
| JLS -1/4.2 | 70―120 |
| JLS -1/4.3 | 150―240 |
| JLS -1/4.4 | 300―400 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| JLS -1/5.0 | 10-16 |
| JLS -1/5.1 | 25 ― 50 |
| JLS -1/5.2 | 70―120 |
| JLS -1/5.3 | 150―240 |
| JLS -1/5.4 | 300―400 |
Major technology index
| Item | Parameter |
| West state power frequency withstand voltage test | 4kv, 1min |
| 4h power frequency withstand voltage test | 2.4kv, 4h |
