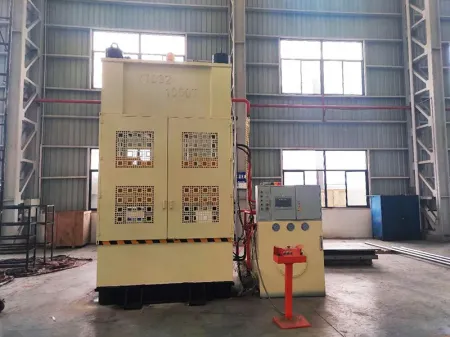

HSI Vacuum Press, 4 Post Press
Request a Quote
Vacuum Chamber Press Features Vacuum Shroud and Hydraulic System
Benefits
- The vacuum forming process ensures an excellent raw material fluidity and reduces the rate of bubble occurrence.
- Processing workpieces in the vacuum chamber also reduces heat dissipation, shortens the production time, and improves productivity.
- This vacuum press features a variety of demolding devices, ensuring it is suitable for a wide array of mold types.
Specifications
| Capacity (tons) | 200 | 250 | 300 |
| Platen Size (mm) | 520*530 | 560*600 | 600*650 |
| Cylinder Bore (mm) | Ø355 | Ø400 | Ø450 |
| Stroke (mm) | 250 | 300 | 300 |
| Horsepower (HP) | 10 | 10 | 10 |
| Vacuum Pump Horsepower (HP) | 3 | 3 | 3 |
| High Speed (mm/sec) | 30 | 30 | 30 |
| Low Speed (mm/sec) | 1~3 | 1~3 | 1~3 |
| Weight (KG) | 9000 | 10000 | 12500 |
| Dimension (mm) | 3000*1800*2100 | 3300*1800*2100 | 3500*2000*2100 |
