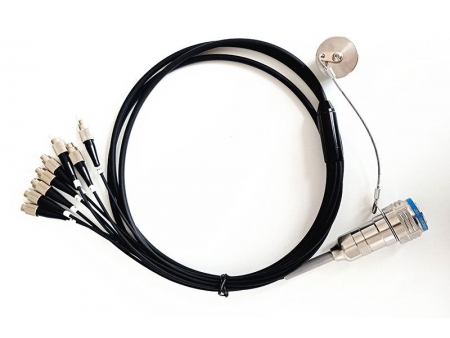

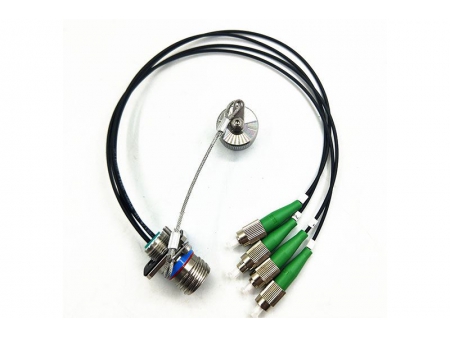

D38999 III Series
Applications

Ideal for a wide range of applications, including maritime and naval communication equipment, avionics systems, harsh environments with acid, alkali, salt, and humidity, military communication, and outdoor and rugged environments.

D38999/20KB04A1N
D38999/20KC08A1N
D38999/26KA94B1N
D38999/26KA94B1N
D38999/26KB04B1N
D38999/26KC08B1N
General Information
  • Compliant with MIL-DTL-38999 III series interface
  • Flexible housing options with various materials and coatings to meet specific environmental requirements
  • Five-key positioning for blind mating and anti-misinsertion functionality
  • Triple-start thread for quick connection with anti-loosening mechanism
  • Precise alignment achieved through ceramic ferrules
  • Multiple rear accessory options available
  • Adapter socket available, offering sealed solutions and liberating optical cable constraints
Main Technical Information
Connector Performance
  • Insertion Loss:
    • Single mode: ≤1.0dB
    • Multimode: ≤0.75dB
    • Return Loss: ≥50dB
  • Mechanical Performance:
    • Plug Retention Force: ≤1000N (for main cables)
    • Socket Retention Force: ≤100N (for branch fiber cables)
  • Plug Retention Force: ≤1000N (for main cables)
  • Socket Retention Force: ≤100N (for branch fiber cables)

Common Connection Schemes
Compatible Optical Cable Specifications
  • Cable Diameter: 4mm; 7mm (or other specified sizes)
  • Jacket Material: TPU
  • Strength Member: KEVLAR
  • Fiber Types: 9/125, 50/125, 62.5/125
  • Fiber Coating: 900μm tight buffered fiber
  • Tensile Strength: short-term: 1200N, long-term: 600N
  • Operating Temperature: -40°C to 85°C
