Fiber Optic Connectors
Request a Quote

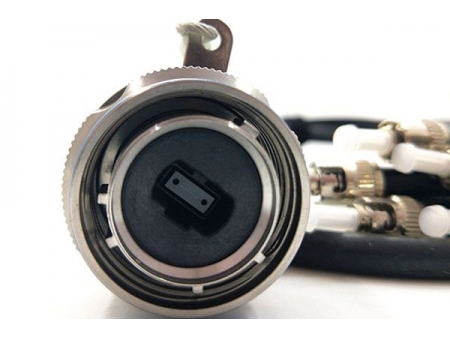

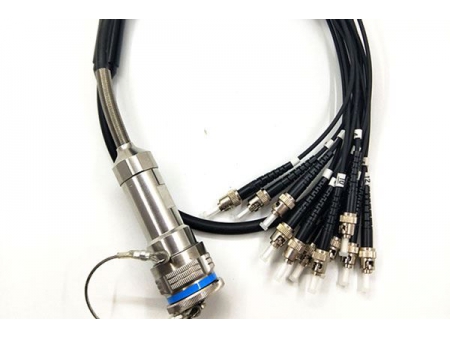

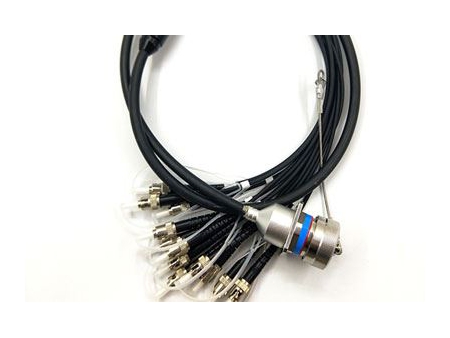

D38999 MPO Series
Applications
Ideal for a wide range of applications, including maritime and naval communication equipment, avionics systems, harsh environments with acid, alkali, salt, and humidity, military communication, and outdoor and rugged environments, available in various specifications (2 to 96 pins).
General Information
- Five-key positioning for blind mating and anti-misinsertion functionality
- Triple-start thread for fast connection with anti-loosening structure
- Connectors made from stainless steel 316L material, ensuring high contact density and electromagnetic shielding capabilities
- Waterproof, dustproof, and corrosion resistance properties
Main Technical Information
- Insertion Loss:
- Single Mode: ≤0.75dB (typically ≤0.50dB)
- Multimode: ≤0.6dB (typically ≤0.3dB)
- Return Loss: ≥50dB
- Mechanical Performance
- Plug: ≤500N (for main cable)
- Receptacle: ≤30N (for branch fiber optic cable)
- Operating Temperature: -40°C to 85°C
- Protection Level: IP67

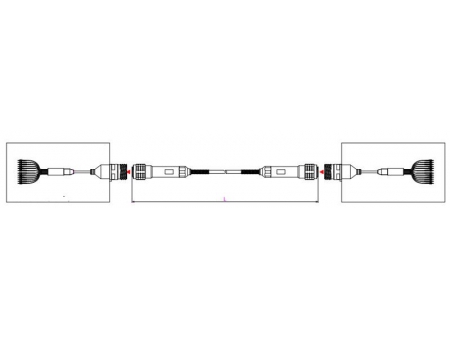

Common Connection Schemes
