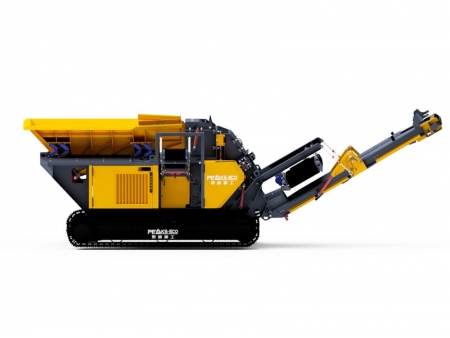

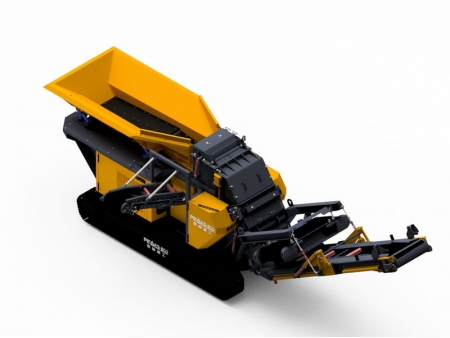

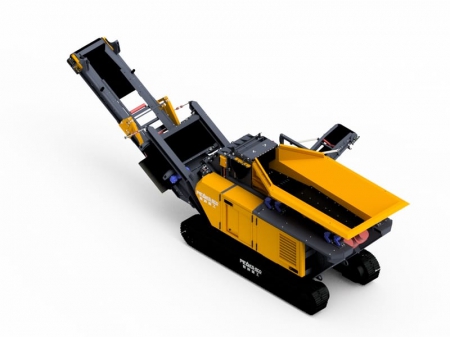

Mobile Impact Crusher
PEAKS-ECO mobile impact crusher integrates crushing and screening equipment for quick and easy on-site installation. Its design allows it to operate not only directly at the worksite but also from nearby locations or staging areas – the machine comes with a standard wireless remote control that offers full plant operation capabilities and tracking, making it easy to maneuver around the job site. The ability to maneuver significantly reduces material transportation costs.
The machine offers a range of power options, including connection to an external power source as well as dual-fuel capability (electric and diesel), enabling it to adapt to various working conditions. It also incorporates a variable frequency drive system that enables low-current startups to protect the motor from overload, promotes stable performance, and enhances energy efficiency.
Our customers are free to choose from a variety of configurations to suit different raw materials, project sizes, and finished product requirements.
- Mines
- Highways
- Railways
- Bridges
- Urban Construction Waste Treatment
- Power System: Equipped with multiple drive options including external power supply and dual fuel (both electric and diesel), meeting diverse operational requirements.
- Variable Frequency System: Features a variable frequency drive for low-current startup to prevent motor overload, ensuring smooth operation and reducing energy consumption.
- Main Unit System: Utilizes a European-style dual-chamber main unit, producing well-shaped final products with a high crushing ratio. The heavy-duty rotor significantly enhances production capacity.
- Hydraulic System: Allows hydraulic adjustment of the gap between the impact plate and blow bars.
- Variable Frequency Feeding Technology: Automatically adjusts the feeding speed to maintain full-load operation of the main unit, increasing output.
- Other Features: Wireless remote control enables convenient and safer operation. An optional integrated crushing and screening (BRS) model is available, featuring an enlarged double-layer screen body that can separate three types of materials simultaneously, meeting customer needs.
| Model | | | | | | |
| Max. feeding size (mm) | 500 | 500 | 600 | 700 | 600 | 600 |
| Feeding height (mm) | 3780 | 3780 | 4020 | 4300 | 3750 | 3800 |
| Crusher model | CF250 | CF250 | 1213 | KI-130 | CF400 | CF400 |
| Crusher power (kW) | 250 | 250 | 250 | 250 | 315 | 315 |
| Capacity (t/h) | 150-360 | 150-360 | 150-360 | 200-400 | 180-650 | 180-650 |
| Working power (kW) | 310 | 313 | 320 | 322 | 376 | 385 |
| Dimensions (L×W×H) (m) | 17.0×4.0×4.0 | 19.0×4.0×4.0 | 19.0×4.0×4.0 | 20.0×4.0×4.0 | 18.0×4.0×4.0 | 20.0×4.0×4.0 |
| Machine weight (t) | 54 | 64 | 60 | 70 | 63 | 65 |
