Fertilizer Drying, Cooling & Coating Equipment
Rotary Drum Dryer
Request a Quote
Our rotary drum dryer is a crucial piece of equipment used across various industries, including cement, mining, construction, chemical, food, and fertilizer manufacturing.
Key Components

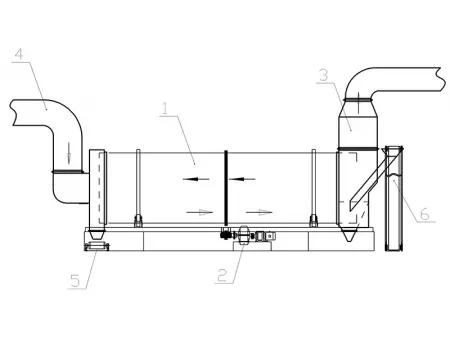

The rotary drum dryer consists of a cylindrical drum, internal lifter flights, a transmission device, support devices, and a sealed cover. It also has a feeding inlet and a discharge outlet equipped with thermocouples, which provide a clear display of the temperature changes at both ends of the dryer.
Specifications
| Drum Size (m) | Production Capacity (t/h) | Power (kW) | Motor Model | Reducer Model | Ratio | Weight (t) |
| Ø1×10m | 0.5-1 | 5.5 | Y132M2-6 | ZL400- Ⅱ | 25 | 10.5 |
| Ø1.2×10m | 1-2 | 7.5 | Y160M-6 | ZL500-I | 25 | 13.5 |
| Ø1.5×12m | 2-5 | 11 | Y160L-6 | JZQ500-Ⅲ | 25 | 18.9 |
| Ø1.5×15m | 4-6 | 15 | Y180L-6 | JZQ500-Ⅲ | 25 | 21 |
| Ø1.8×12m | 5-8 | 18.5 | Y200L1-6 | ZQ50-16Ⅱ | 16.46 | 22.83 |
| Ø2.2×12m | 6-10 | 18.5 | Y200L1-6 | JZQ650-Ⅲ | 31.5 | 37.6 |
| Ø2.2×14m | 7-12 | 18.5 | Y200L1-6 | JZQ650-Ⅲ | 31.5 | 40 |
| Ø2.2×16m | 9-14 | 30 | Y225M-6 | JZQ750-Ⅲ | 31.5 | 45 |
| Ø2.4×14m | 10-16 | 30 | Y250M-6 | JZQ750-Ⅲ | 31.5 | 51 |
| Ø2.4×18m | 12-18 | 37 | Y250M-6 | ZL85-13-I | 27.16 | 54 |
| Ø2.4×20m | 14-22 | 37 | Y250N-6 | ZL85-13-I | 27.16 | 54.14 |
| Ø3×20m | 16-25 | 55 | Y250M-4 | ZL100-16-I | 41.52 | 78 |
| Ø3×25m | 32-36 | 75 | YR280M-4 | ZL100-16-I | 41.52 | 104.9 |
The drum is made of Q235 steel, and the internal liners can be customized to stainless steel.
How It Works

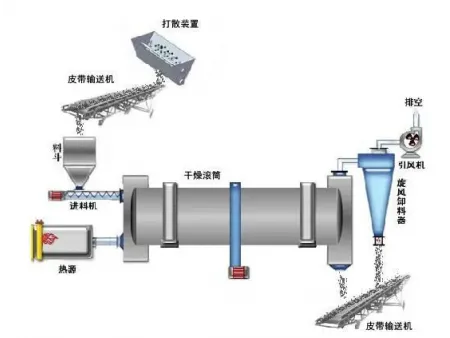

The heat source for the rotary drum dryer comes from a combustion unit. The dryer uses a counter-current heating mode, where hot air enters the dryer from the discharge end. The material to be dried enters the inclined rotating drum from the feed box and is pushed to the back by a screw lifter. As the drum rotates, the material tumbles and is repeatedly scooped up and dropped by the lifter flights. This allows for thorough heat exchange with the hot air, gradually drying the moisture from the material.
On-Site Cases
Anhui Hui’ang Chemical ordered a Ø2.4×24m rotary drum dryer (in production)
Xinjiang Yuxiang Huyang Chemical ordered a Ø2.0×20m rotary drum dryer
Gansu Wobao Agriculture purchased a Ø2.2×24m rotary drum dryer
Gansu Fenggu Gaoke newly built a Ø2.2×24m rotary drum dryer
