Rotary Drum Cooler

Request a Quote

Website: http://fertilizermachine-en.com/3-2-rotary-drum-cooler.html

Fertilizer Drying, Cooling & Coating Equipment

Counter-current cooling
High-temperature material makes contact with a low-temperature cooling medium, maximizing heat recovery. For compound fertilizers, the optimized air duct design reduces heat loss, preserving fertilizer efficacy and material quality.
Compact & efficient sealing
The labyrinth-style seal minimizes leakage of energy and cooling media. The transmission system offers two different layouts, allowing for flexible installation in various factory spaces.
Easy maintenance
Its flanged connection assembly allows for localized repairs without needing a complete teardown. The typical maintenance cycle is over six months.

Specifications

Model		HZ1210	HZ1515	HZ1818	HZ2020	HZ2220	HZ2420	HZ2626	HZ2826	HZ3026
Drum Size (m)		Ø1.2×10	Ø1.5×15	Ø1.8×18	Ø2.0×20	Ø2.2×22	Ø2.4×20	Ø2.6×26	Ø2.8×26	Ø3.0×26
Production Capacity (t/h)		3-5	6-8	8-10	10-14	15-18	18-22	22-25	26-30	30-35
Rotation Speed (r/min)		5.2	4.4	4.2	4.0	4.0	3.6	3.5	3.25	2.6
Inclination (°)		2-2.5
Motor	Model	Y160M-6	Y180L-6	Y200L2-6	Y225M-6	Y280S-6	Y280M-6	Y315S-6	Y315M-6	Y315L2-6
Motor	Power (kW)	7.5	15	22	30	45	55	75	90	132
Dimensions (L×W×H) (mm)		10750 × 2025 ×2130	15750 × 2375 × 3110	19600 × 2630 × 3400	20750 × 2820 × 3200	2200 × 3380 × 4100	22600 × 4200 × 4500	28000 × 4400 × 5100	30000 × 4280 × 5410	22745 × 4810 × 4920

The drum is made of Q235 steel, and the liner can be customized to stainless steel.

How It Works

Rotary drum cooler uses counter-flow cooling. The rotating drum exchanges heat with air, quickly cooling fertilizer to ambient temperature. This allows timely packaging and prevents caking during transport.

On-Site Cases

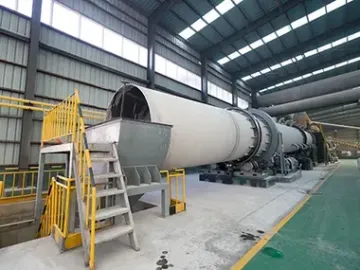

Lutian Fertilizer purchased Ø2.0×16m rotary drum cooler

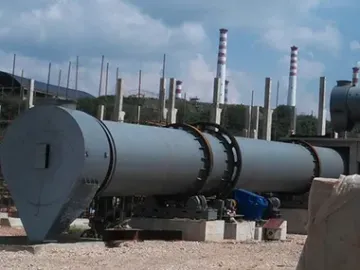

Ningxia Lutian Eco Fertilizer purchased Ø2.6×24m rotary drum cooler
