MPCA Single Pilot Operated Check Valve
Request a Quote
- Modular, compact design engineered for safe and reliable load holding in hydraulic systems
- Available in multiple flow capacity options, suitable for diverse installation requirements across various machinery applications
Model Options
| Model | Pressure | Flow |
| MPCA-08 Single Pilot Operated Check Valve | 210bar | 30L/min |
| MPCA-10 Single Pilot Operated Check Valve | 210bar | 60L/min |
| MPCA-12 Single Pilot Operated Check Valve | 210bar | 100L/min |
Specifications
| Rated Pressure | 210bar |
| Rated Flow | 30L/min 60L/min 100L/min |
| Fluid Temperature Range | -30℃～100℃ |
| Ambient Temperature Range | -20℃～80℃ |
| Valve Body Material | Aluminum alloy |
| Oil Viscosity Range | ISO 20～400mm²/s |

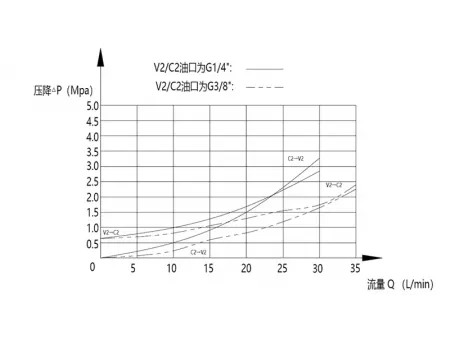

Performance Curve
MPCA-08 Single Pilot Operated Check Valve
MPCA-10 Single Pilot Operated Check Valve
Applications
The single pilot operated check valve (210 bar) is used across a wide range of equipment in construction machinery and material handling applications, that ensures secure cylinder locking and keeps actuator movement steady:
- Excavators: Installed on dozer blades, attachment arms, and other critical sections to lock cylinder positions and move steadily , ensuring operational safety and stability.
- Earthmoving machines: Used on graders, backhoe loaders, and various road construction equipment to prevent hydraulic actuators from unintended movement caused by external forces or system pressure loss.
- Material handling equipment: Ideal for telehandlers, aerial work platforms, and AGV transport vehicles, providing reliable cylinder locking and controlled motion to maintain equipment safety during lifting and handling operations.
