MPCS Dual Pilot Operated Check Valve
Request a Quote
- Modular, compact design engineered for safe and reliable load holding in hydraulic systems
- Available in multiple flow capacity options, suitable for diverse installation requirements across various machinery applications
Model Options
| Model | Pressure | Flow |
| MPCS-08 Dual Pilot Operated Check Valve | 350bar | 30L/min |
| MPCS-10 Dual Pilot Operated Check Valve | 350bar | 60L/min |
| MPCS-12 Dual Pilot Operated Check Valve | 350bar | 100L/min |
Specifications
| Rated Pressure | 350bar |
| Rated Flow | 30L/min 60L/min 100L/min |
| Fluid Temperature Range | -30℃～100℃ |
| Ambient Temperature Range | -20℃～80℃ |
| Valve Body Material | Steel |
| Oil Viscosity Range | ISO 20～400mm²/s |

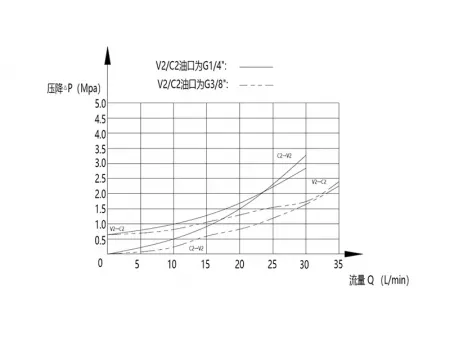

Performance Curve
MPCS-08 Dual Pilot Operated Check Valve
MPCS-10 Dual Pilot Operated Check Valve
Applications
The dual pilot operated check valve (350 bar) is designed for hydraulic systems that require reliable bi-directional load holding to securely lock cylinders during extension and retraction. It is commonly used in:
- Excavators: Installed on dozer blades, auxiliary arms, and attachments to hold cylinders firmly in place during heavy-duty operations, ensuring safe and steady equipment performance.
- Earthmoving equipment: Applied on graders, backhoe loaders, and road construction machinery to prevent cylinders from unintended movement caused by external forces or system pressure changes, improving on-site stability.
- Material handling machines: Suitable for telehandlers, aerial lifts, and AGV carriers, offering dependable cylinder locking and precise motion control for safer and more consistent lifting and positioning.
