Vibratory Spiral Cooling Conveyor, LSZ Series

Vibratory Spiral Cooling Conveyor, LSZ Series
Vibratory Spiral Cooling Conveyor, LSZ Series
Vibratory Spiral Cooling Conveyor, LSZ Series
Vibratory Spiral Cooling Conveyor, LSZ Series
Request a Quote

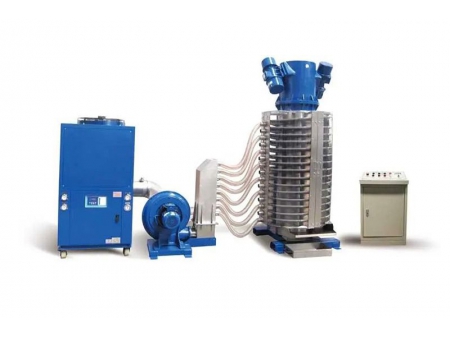

Rubber cooling system used to cool and convey rubber materials in a vertical direction

  • LSZ 1050

    Water cooling & air cooling

  • LSZ 1050L

    Air cooling
    An air cooler is utilized to regulate the temperature.

The vibratory spiral cooling conveyor is an auxiliary machine designed to address adhesion and deformation of rubber blanks, as well as cooling. The converyor's contact parts with the rubber are made in stainless steel and it use perpetual vibratory motion so as to effectively keep the rubber from sticking and deforming.

FKM, NBR, CR, EPDM and other rubber materials are applicable to the production various blanks, including pelleting, bearings seals, oil seals, O-rings, strips, and sheets.

Advantages
  • Extensive cooling range up to 50 m, allowing for maximum cooling and drying capabilities.
  • The frequency of vibration can be manually set, catering to different types of rubber blanks.

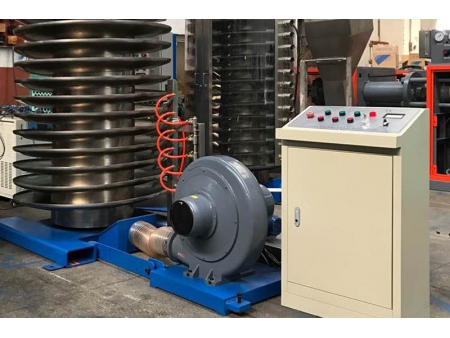

  • Selection of cooling mode: It is suggested to utilize a combination of water and air cooling for materials resistant to water. The LSZ 1050 model conveyor is the ideal choice for this purpose. For types of material that cannot be exposed to water, our LSZ 1050L model conveyor is the ideal option if air cooling is your preferred method.
  • A compact solution which saves factory space.
  • Liquid or powder release agents can be added in the cooling water tank optionally, which aids in preventing blanks from sticking.
  • Sensible design and well-structured internal wiring. All parts connected with aviation plugs, allowing for easy disassembly and installation.

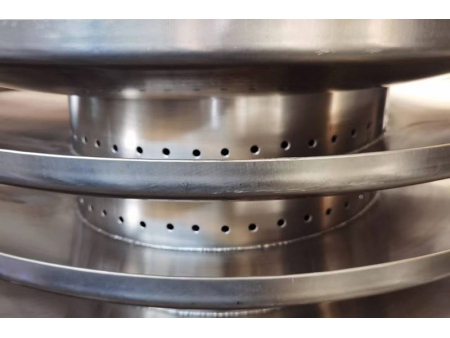

  • The conveyor body made out of SUS304 stainless steel to prevent corrosion from rubber.
Specification
Items Unit
LSZ1050
LSZ1050-L
Groove diameter mm 1050 1050
Groove width mm 240 240
Groove height mm 1600 1600
Travel distance mm 35000 35000
Flight pitch mm 110 110
Width of inlet mm 650 650
Height of inlet (above ground level) mm 300 300
Width of outlet mm 245 245
Height of outlet (above ground level) mm 1650 1650
Conveyor Speed (adjustable) m/min 6~8 6~8
Motor power kw 0.75*2 0.75*2
Cooling fan power kw 3.7 3.7
External dimension (L*W*H) m 2.15*1.35*2.56 2.15*1.35*2.56 (machine body)
Weight T 1.2 1.7
