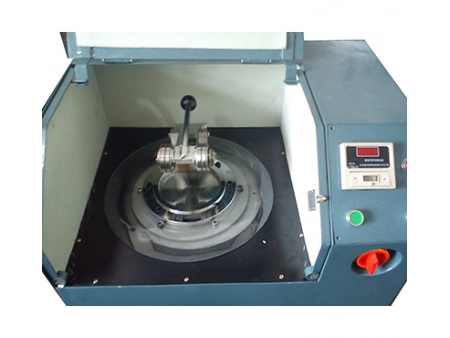

TBTZM-1 Vibration Mill
Request a Quote
TBTZM-1 vibration mill is designed for preparing powdered substance for X-ray fluorescence(XRF) Analysis. This vibration mill guarantees a high degree of reproducibility in the preparation of samples.
Technical Parameters
- Rotation rate (rpm) 910
- Vessel volume (cm3) 100
- Feed grain (mm) ﹤5
- Dimension (m) 0.55×0.75×0.94
- Net weight (kg) 230
- Power supply AC380, 3∮, 50Hz
- Nominal power (kw) 1.1
- 3-Phase AC 380V
- Permissible deviation ±5%
- Frequency 50Hz
- Power 1.1kW
