ZSZ-1 Shear Vane Devices
Request a Quote

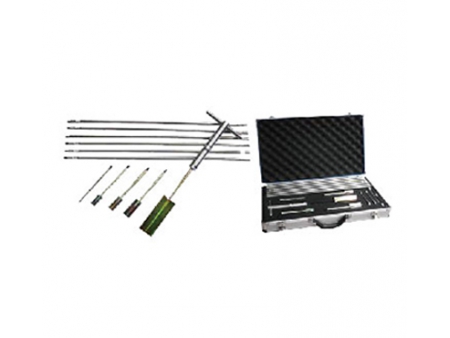

This cross-plate vane shear is an instrument used to determine the natural shear strength of saturated soft clay in the field. For sensitive soft clay, the perturbation of sampling is very obvious. Use this apparatus can obtain actual strength.
Technical Parameters
| Cross plate dimension: | Ø75mm x 150mm, Ø50mm x 100mm |
| Torque moment of steel ring: | 80N.m |
| Torque moment accuracy: | 0.55N.m |
| Guide rod size | Ø30mm x 1040mm |
Technical Parameters
| NO. | Size(mm) | Measuring range(KPa) | Coefficient |
| 1 | 20*40 | 0-130 | 1 |
| 2 | 16*32 | 0-260 | 2.6 |
| 3 | 25.4*50.8 | 0-65 | 0.65 |
| 4 | 50.8*101.6 | 0-8.125 | 0.0625 |
- Cross plate head size:
- Max.measuring range:0-260KPa
- Max.measuring depth:3000mm

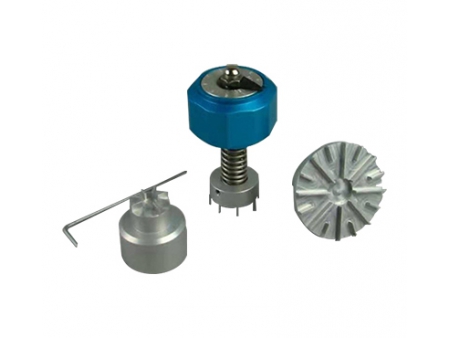

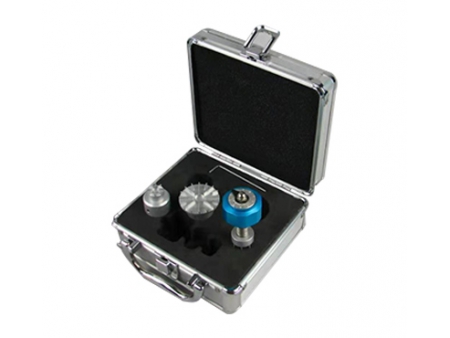

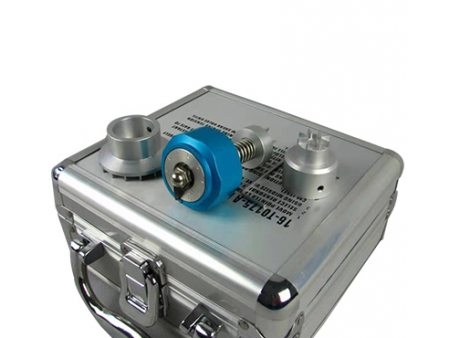

TBTVST mini cross-plate shear is a portable instrument that measures the shear strength of a soil indoors or in field. Used with mini penetration instrument to quickly assess internal friction angle of the soil & determine if the soil is sticky.
Technical Parameters
| Head specification | Size mm | Measuring Range | coefficient |
| A | Ø 25.5 | 0~1 | 1 |
| B | Ø 19 | 0~2.5 | 2.5 |
| C | Ø48 | 0~0.2 | 0.2 |
