Pin Mill

Request a Quote

View All: http://finegrindingmill.com/3-2-pin-mill.html

Ideal for processing materials with a maximum Mohs hardness of 3

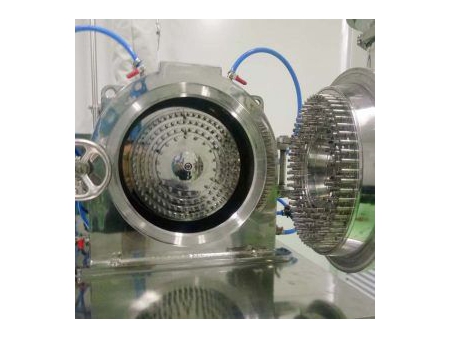

Two pin discs move past each other at high speed
Fineness of the product adaptable by adjusting the rotating speed of the discs

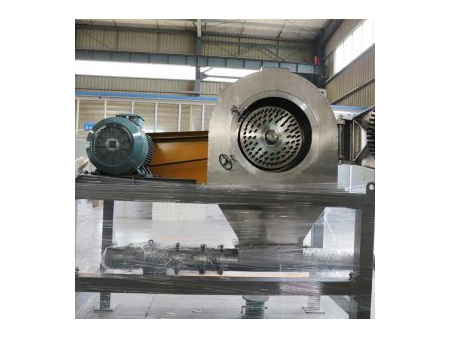

Convenient to clean by opening the grinding door
Materials should not exceed a Mohs hardness of 3
No sieve design for smooth discharge and high productivity
Dual power available, offering low operating costs with linear speed up to 200 m/s for greater grinding force

How it works

The feeding system feeds the materials evenly into the grinding chamber, exposing them to strong impacts from the high-speed rotating grinding discs. The materials are subjected to various forces, including friction, shearing, and collision between the static disc and gear ring, which leads to the grinding—depending on the properties of different materials, choosing from varying combinations of both discs so that it meets specific requirements for other materials.

Technical Parameters

Parameter	160	250	360	500	630	800	1000
Coarse grinding disc diameter (mm)	180	270	380	580	640	750	1000
Coarse grinding disc rotate speed (r/min)	9000	6000	4680	2480	2300	2150	1800
Coarse grinding disc linear speed (m/s)	84.8	84.8	93.1	75.3	77.1	84.4	94.2
Coarse grinding power (kW)	4	7.5	22	37	45	55	75
Dual power (kW)			22 30		2x55
Micronized grinding disc diameter (mm)	160	260	360	520	630	730	1000
Micronized grinding disc rotate speed (r/min)	12000	7500	5550	3850	3200	2800	2050
Micronized grinding disc linear speed (m/s)	100.5	102.1	104.6	104.8	105.6	107.0	107.3
Micronized grinding power (kW)	4	7.5	22	37	55	75	90
Max. air flow (m³/h)	360	1000	2400	3200	5700	7500	10000

Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.
