62mm 60W Brushless DC Planetary Gear Motor Manufacturer

62mm 60W Brushless DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-2-4-brushless-planetary-gear-motor.html

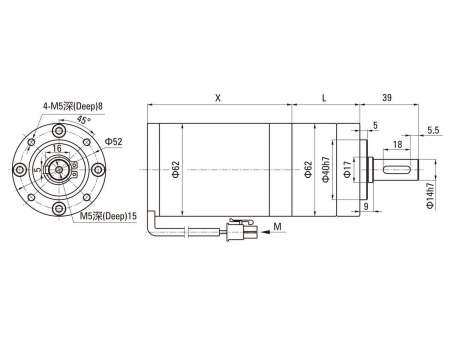

Motor Specifications

Motor Model	Dimension mm	Gearbox Model	Gear Ratio	Dimension (mm)
Z62BLDPN2460-30S	96	62PN()	3.65～8.63	45.1
			13.53～58.22	62.7
Z62BLDPN2490-30S	113
			67.08～392.98	80.3

BLDC Motor Technical Data

Motor Model	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated TorqueN.m	IP Ratings
Z62BLDPN2460-30S	24	60	3.4	3000	0.191	20
Z62BLDPN2490-30S	24	90	5.4	3000	0.287	20

BLDC Planetary Gear Motor Technical Data

Gear Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output Shaft Speed r/min	822	560	458	348	222	159	122	107	88	67	52	45	37
Allowance Torque N.m	0.63	0.92	1.13	1.48	2.09	2.93	3.81	4.34	5.25	6.91	9.01	9.35	11.31
Reduction Stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Gear Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output Shaft Speed r/min	33	29	25	23	21	18	16	13	10	8
Allowance Torque N.m	12.74	14.34	16.59	17.81	20.27	23.10	26.71	32.29	42.06	45.00
Reduction Stage	3	3	3	3	3	3	3	3	3	3
