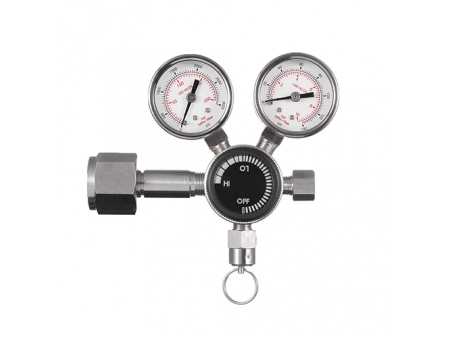

BP31 Dual-Gauge Pressure Regulator with Safety Valve, Match Universal CO₂ and N2 Refillable Cylinders, Perfect for Bars and Aquariums
Request a Quote
View All: http://minikegdispenser.com/3-2-5-BP31-dual-gauge-pressure-regulator-with-safety-valve.html
- Medium: N2, CO₂, AIR, HE
- Outlet Pressure Range: 0~25psi, 0~50psi, 0~100psi
- Max. Working Inlet Pressure: 1200psi, 2000psi, 3500psi
- Burst Pressure (Rupture Disc): 1800psi, 3000psi, 5000psi
- MOQ: 100 pieces
- OEM sample available for brands
Compact dual-gauge pressure regulators are designed for versatility and precision. Operating within a pressure range of 0-10 bar, it ensures stable gas output with adjustable settings. Equipped with a safety valve, the CO₂ regulator effectively mitigates the risk of overpressure, making it a reliable choice for various applications. This regulator is compatible with standard CO₂ and N2 refillable cylinders used internationally. The dual gauges provide real-time readings of both cylinder pressure and output pressure, with a regulation accuracy of ±3 PSI, making it ideal for bars, aquariums, and other settings.
Specifications
| Model | | | |
| Body Material | 6061-T6 | Hsi59-0.5 | Stainless Steel |
| Surface Treatment | Hard anodizing | Passivating | / |
| Medium | N2, CO₂, AIR, HE | ||
| Operating Temperature | -20℃~80℃ | ||
| Outlet Pressure Range | 0~25psi, 0~50psi, 0~100psi | ||
| Pressure Gauge Accuracy | Display error of less than 1psi | ||
| Pressure Accuracy | ±1psi | ||
| Applicable Cylinders | Inflatable Standard Gas Cylinder | ||
| Max. Working Inlet Pressure | 1200psi | 2000psi | 3500psi |
| Burst Pressure (Rupture Disc) | 1800psi | 3000psi | 5000psi |

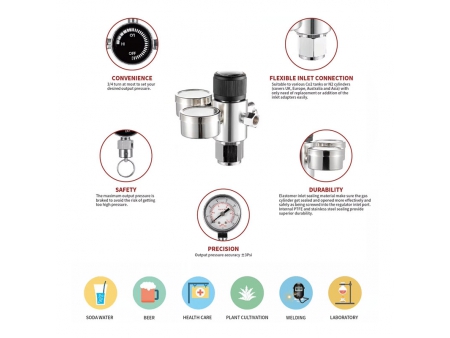

- Product Features

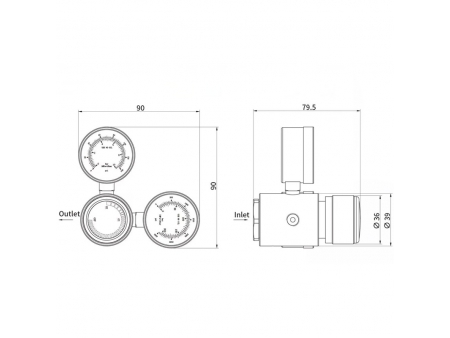

- Overall Dimensions

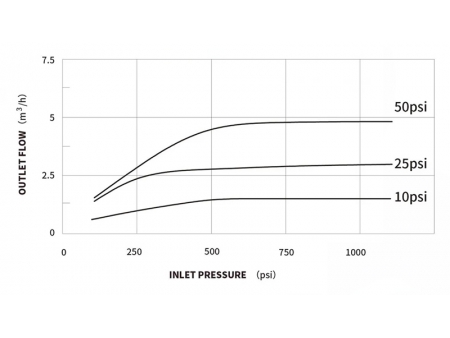

- Flow Characteristic

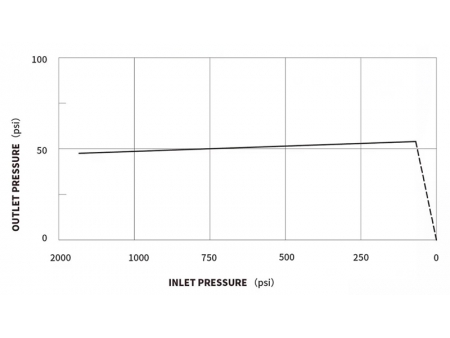

- Pressure Characteristic
