105mm 350W/550W/750W Brushless DC Planetary Gear Motor Manufacturer

105mm 350W/550W/750W Brushless DC Planetary Gear Motor

Request a Quote

View All: http://zd-drivers.com/3-2-7-brushless-planetary-gear-motor.html

Motor Specifications

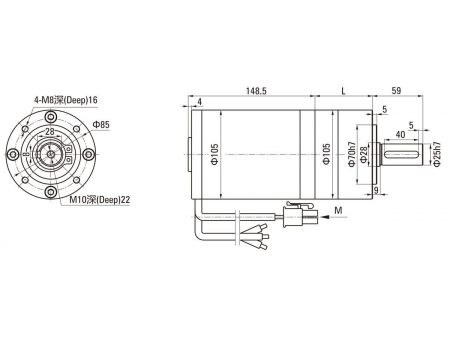

Motor Model	Gearbox Model	Gear Ratio		Dimension (mm)
Z105BLDPN	105ZPN()	Stage 1	3.65～8.63	83.80
		Stage 2	14～58	114.9
		Stage 3	67～393	146.0

BLDC Motor Technical Data

Motor Model	Voltage V	Power W	No-load Current A	No-load Speed	Rated Current A	Rated Speed RPM	Rated TorqueN.m	Motor Life H
Z105BLDPN24350-30S	24	350	1.8	3500	18.5	3000	1.114	5000
Z105BLDPN48550-30S	48	550	1.5	3500	14.5	3000	1.751	5000
Z105BLDPN48750-30S	48	750	1.8	3600	19.5	3000	2.386	5000

BLDC Planetary Gear Motor Technical Data

Gear Ratio	3.65	5.36	6.55	8.63	13.53	18.92	24.65	28.05	33.92	44.69	58.22	67.08	81.11
Output Shaft Speed r/min	822	560	458	348	222	159	122	107	89	67	52	45	37
Allowance Torque N.m	5.75	8.45	10.32	13.60	19.19	26.83	34.96	39.78	48.10	63.38	82.57	85.74	103.67
Reduction Stage	1	1	1	1	2	2	2	2	2	2	2	3	3

Gear Ratio	91.36	102.88	118.98	127.74	145.36	165.64	191.56	231.61	301.68	392.98
Output Shaft Speed r/min	33	29	25	24	21	18	16	13	9.9	7.6
Allowance Torque N.m	116.77	131.49	152.07	163.27	185.79	195.00	195.00	195.00	195.00	195.00
Reduction Stage	3	3	3	3	3	3	3	3	3	3
