Flat Glass Transferring Conveyor

Request a Quote

Website: http://glassmachine-en.com/3-2-flat-glass-transferring-conveyor.html

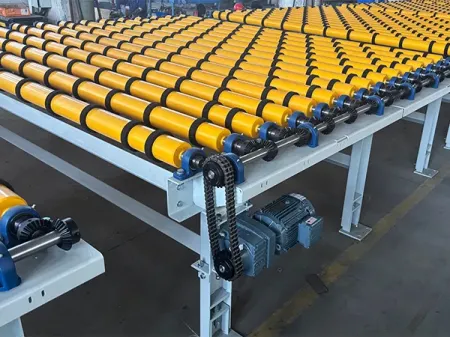

Automatic roll conveyor and interlinking system for flat glass sheets

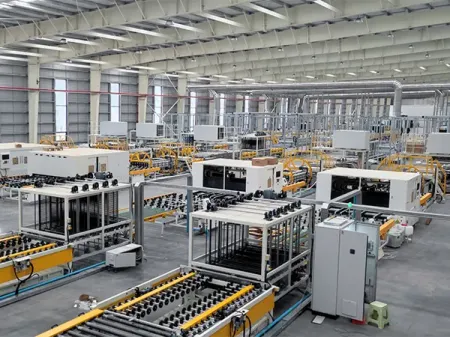

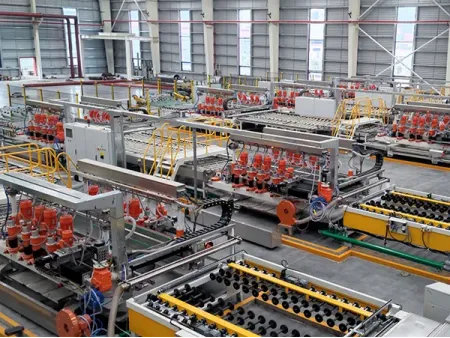

The flat glass transferring conveyor is designed to connect different process equipment within a glass production line, ensuring smooth material flow and balanced capacity across all stations. By coordinating equipment communication and synchronizing throughput, the system enables continuous and stable operation of photovoltaic glass production lines and other flat glass processing applications.

Applicable glass type: Float glass, rolled glass
Glass sheet thickness: 1.6-4.0mm
Glass sheet size: 2500×1400mm (max.), 600×600mm (min.)
Max. glass sheet weight: 30kg/pc
Conveying speed: Vmax=0-110m/min
Speed control: Variable frequency speed control
Production capacity of glass line: ≥18pcs/min (calculated based on the production capacity of a 60m glass tempering furnace)
Ambient temperature: -20 to 50℃
Conveyor height: 900±50mm
Qualified rate: ≥99.2%

Types of Flat Glass Transferring Conveyors

Transition conveyor
Roller height: 900 ± 50 mm
Dimensions (L × W): 2950 mm × 2000 mm
Conveying speed: 6 - 60 m/min
Transverse transition conveyor
Roller height: 900 ± 50 mm
Dimensions (L × W): 1950 mm × 3100 mm
Conveying speed: 6 - 60 m/min
Acceleration/deceleration conveyor
Roller height: 900 ± 50 mm
Dimensions (L × W): 2950 mm × 2000 mm
Conveying speed: 6 - 60 m/min
Space adjusting roller conveyor
Roller height: 900 ± 50 mm
Dimensions (L × W): 3350 mm × 2050 mm
Conveying speed: 6 - 60 m/min
Positioning conveyor
Roller height: 900 ± 50 mm
Dimensions (L × W): 2980 mm × 2160 mm
Conveying speed: 6 - 60 m/min
Integrated glass storage system
Dimensions (L × W × H): 2940 mm × 2560 mm × 2900 mm
Capacity: 30 sheets
Grid spacing: 30.8 mm
Lifting speed: 1.5 s/layer
Roller conveying speed: 9 - 90 m/min
Separated glass storage conveyor
Dimensions (L × W × H): 2940 mm × 2560 mm × 2900 mm
Capacity: 30 sheets
Grid spacing: 30.8 mm
Lifting speed: 1.5 s/layer
Crossover conveyor (pneumatic lifting)
Dimensions (L × W × H): 3000 mm × 2400 mm × 965 mm
Roller speed: 9 - 90 m/min
Belt speed: 9 - 90 m/min
Lifting/lowering time: <1 s
Crossover conveyor (motorized lifting)
Dimensions (L × W × H): 3000 mm × 2400 mm × 965 mm
Roller speed: 9 - 90 m/min
Belt speed: 9 - 90 m/min
Lifting/lowering time: <1 s
Opening/closing conveyor
Dimensions (L × W × H): 4660 mm × 2100 mm × 2600 mm
Belt conveying speed: 6-60 m/min
Rejection system conveyor
Cycle time: 15 sheets/min
Speed: 90 m/min
Glass size: 1644 × 985 mm - 2500 × 1400 mm
Glass thickness: 1.6-3.2 mm
Waste discharge conveyor
Speed: 6 sheets/min
Max. glass size: 2500 mm × 1400 mm × 4 mm

Features

High yield
For cover glass lines, when BBKS supplies the full equipment package, the finished product yield of the deep processing line can reach around 99.2%.
Stable communication
The communication network is built with three-layer switches and uses VLAN (Virtual Local Area Network) technology. This ensures physical isolation between the connecting conveyor system and process equipment, avoiding network storms and securing stable production.
Production line balancing
With a well-structured communication system, equipment status is monitored in real time. The storage system dynamically adjusts the upstream process to maintain consistency, ensuring balanced capacity across the entire production line.
Energy saving
The conveyor can stop freely during idle periods and run continuously only when tasks are present. This reduces frequent start/stop wear, lowers material consumption, and significantly improves energy efficiency.
Easy maintenance
Rational process zoning minimizes the impact of maintenance and inspection on production. In addition, a comprehensive alarm system supports fast troubleshooting, making maintenance more efficient.
