Automatic glass stackers used in float glass production line for handling glass sheets

Horizontal Glass Stacker

The horizontal glass stacker uses a horizontal transfer mechanism to grip glass sheets from the upper surface and stack them in a flat position. It is available in two types: the horizontal insertion stacker and the horizontal shuttle glass stacker, that are mainly used in float glass production lines, providing reliable and efficient stacking operations.

  • Power: 43.7kW
  • Working pressure: 0.6MPa
  • Working accuracy: ±0.3mm
  • Max. stacking speed: 12s/pc
  • Glass sheet size (W×L): (3000-3660)×(2134-6000)mm
  • Glass sheet thickness: 3-19mm
  • Max. loading capacity: 850kg

Vertical Glass Stacker

The vertical glass stacker allows switching between upper and lower pickup modes to handle glass sheets flexibly. It is available in two types: the small-to-medium sheet vertical stacker and the large-format vertical stacker. This equipment is mainly applied in float glass production lines, providing reliable performance and efficient stacking for different glass sizes.

  • Power: 35.45kW
  • Working pressure: 0.6MPa
  • Working accuracy: ±0.3mm
  • Max. stacking speed: 6s/pc
  • Glass sheet size (W×L): (915-4880)×(1070-3660)mm
  • Glass sheet thickness: 1.5-15mm
  • Max. loading capacity: 700kg

Automatic Glass Stacking System

The automatic glass stacking system is equipped with a multi-joint host and a gripping mechanism capable of multiple working postures. It can handle both top and bottom glass pickup, with automatic switching between modes based on production requirements. This high-speed stacker is mainly applied in rolled glass production lines but is also suitable for float glass and deep processing lines.

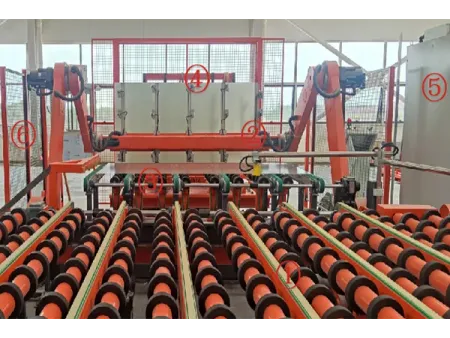

System Components

  • Turning device
  • Stacking host
  • Sheet transfer conveyor
  • Stacking turntable
  • Electrical control system
  • Safety guard

Specifications

  • Power: 22.45kW
  • Working pressure: 0.6MPa
  • Working accuracy: ±0.3mm
  • Max. stacking speed: 6s/pc
  • Glass sheet size (W×L): (800-1600)×(1400-2500)mm
  • Glass sheet thickness: 1.5-8mm
  • Max. loading capacity: 75kg

Automatic Glass Loading Machine

Automatic Loading Machine for Large Format Glass Sheets

  • Glass sheet size (W×L): (2400-3800)×(3000-6000)mm
  • Glass sheet thickness: 4-22mm
  • Max. pickup capacity: 1200kg
  • Loading cycle time: 24s/pc
  • Functions: Options of loading, unloading, and loading unloading (depending on requirements)

Automatic Loading Machine for Medium/Small Format Glass Sheets

  • Glass sheet size (W×L): (2060-4880)×(830-3660)mm
  • Glass sheet thickness: 2-12mm
  • Max. pickup capacity: 540kg
  • Loading cycle time: Small format glass sheet: 7s/pc
  • Medium format glass sheet: 11s/pc
  • Functions: Options of loading, unloading, and loading unloading (depending on requirements)
Advantages

Wide handling range

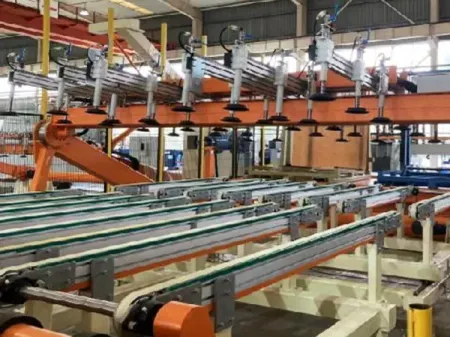

The stacker uses multiple suction cups with extendable crossbars and support structures, allowing it to handle glass sheets of different sizes. This adaptability ensures smooth operation across diverse production requirements.

Faster pickup cycle
Equipped with a high-performance PLC control system and advanced algorithms, the stacker quickly processes sensor signals and motion commands. This greatly improves pickup speed and shortens cycle time.

High stacking precision
The stacking system combines precision gear-and-rack drives, high-performance servo motors, and advanced detection sensors. Together with optimized control algorithms, they deliver highly accurate positioning and stacking results.

Versatility and flexibility
Designed to adapt to evolving industry needs, the stacker goes beyond conventional robotic arms. Configurations can be tailored to different processes, accommodating varied sheet sizes and specialized requirements for stacking and loading/unloading operations.
