Flat Glass Production Line, Cold End

Automatic glass cutting machine used in glass cutting line for longitudinal and cross cutting of flat glass sheets

The automatic glass cutting machine is used for the longitudinal and cross cutting of flat glass sheets in production lines. The system is built around a cutter management module and motion control module, which calculate the optimal cutting strategy in real time based on order requirements and glass defect data.

By combining the transverse breaking system, cutter heads, pressure control, and an intelligent optimization system, the cold end glass production machine achieves efficient horizontal cutting. Multiple cutter heads for longitudinal and cross cutting allow flexible production of different glass sizes. Dynamic switching between cutting bridges ensures continuous, fault-free operation.

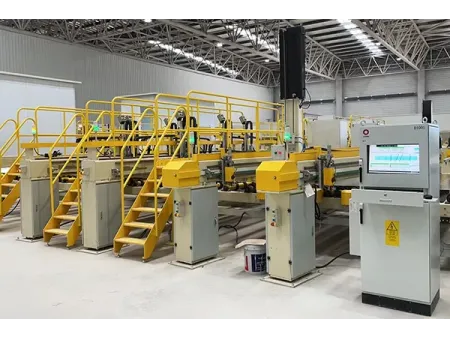

Automatic Glass Cross Cutting Machine (In-line Cutting)
  • Power: 2.2kW/unit
  • Working pressure: 0.4MPa
  • Working accuracy: ±0.3mm
  • Max. cutting speed: 5m/s
  • Max. cutting width: 6000mm
  • Cutting thickness: 1-22mm
  • Cutting force: 0-250N
  • Number of cutting head: customizable

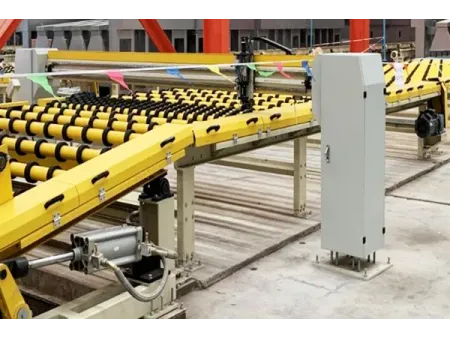

Automatic Glass Longitudinal Cutting Machine (In-line Cutting)
  • Min. power: 1.6kW/unit (depending on the number of cutting knives)
  • Working pressure: 0.4MPa
  • Working accuracy: ±0.3mm
  • Cutting capacity: can cut jumbo size glass into 7 smaller sheets
  • Cutting thickness: 1-22mm
  • Cutting force: 0-250N
  • Number of cutting head: customizable
Features
  • High-precision cutting
    The optimized cutting system employs advanced cutting technology and control, achieving precision of ±0.4 mm transversely and ±0.3 mm longitudinally.
  • Intelligent nesting algorithm
    Integrated smart nesting algorithms minimize material waste, improving finished product yield by 3%-5%.
  • Flexible stripping and optimization
    The system supports minimum transverse stripping of 200 mm, mid-sheet stripping of 600 mm, and edge stripping of 60 mm, with optimization distances of up to 18 meters.
  • Online hot redundancy
    A unique hot redundancy function allows the system to switch during operation or in the event of a fault, ensuring uninterrupted glass production.
  • Comprehensive digital management
    The system can be integrated with other glass production equipment and management platforms, enabling fully digitalized process control.
