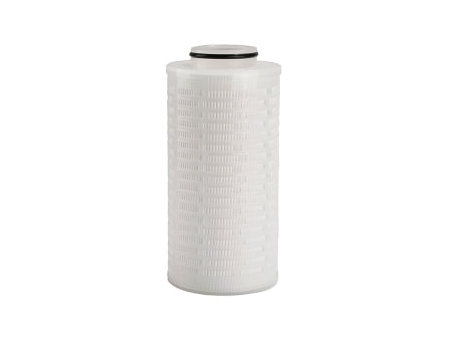

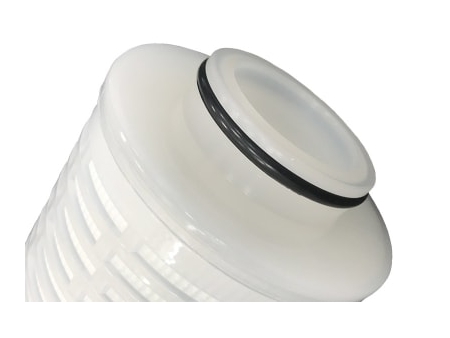

High Flow Membrane Filter Cartridge, 130 Series
Request a Quote
Elevate your pharmaceutical processes with our high flow membrane filter cartridges. Engineered to meet the high flow demands of the pharmaceutical industry, our membrane filter cartridges achieve flow rates over 200L/min. The sleek design maximizes space efficiency, with each single cartridge providing over 2m2 of filter area. Our membrane filter cartridges ensure high flow rate, high dirt holding capacity, and reduced equipment downtime due to filter replacements.
Materials of Construction
| Filter Medium | Hydrophobic PTFE membrane / hydrophilic PTFE membrane / PES membrane / PP membrane |
| Support/Drainage | Polypropylene |
| Center Rod/Housing/End Cap | Polypropylene |
Specifications
| Length | 10" |
| Diameter | 130mm |
| Micron Rating | PFL/PFLH:0.2~10μm EPS:0.05~1.2μm HPPV:0.5~90μm |
| Max. Operating Temperature | 80℃ |
| Max. Differential Pressure | 4.0 bar/21℃ 2.4bar/80℃ |
| Steam Sterilization Flowing Hot Water Sterilization | 121℃/30min 85℃/30min |
| Biological Safety | Dissolved matter＜30mg per 10" Endotoxin level＜0.25EU/ml |
Applications
- Filtration of water for injection
- Infusion solution filtration
- Filtration of buffer solution, disinfectant, and cleaning fluid
