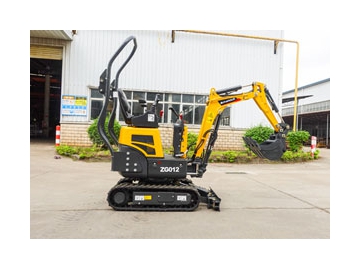

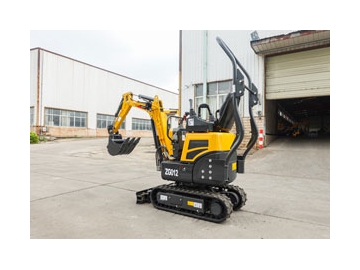

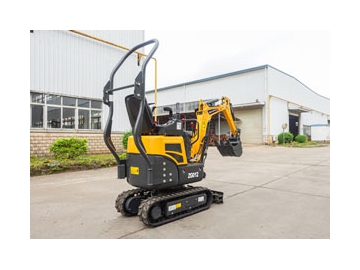

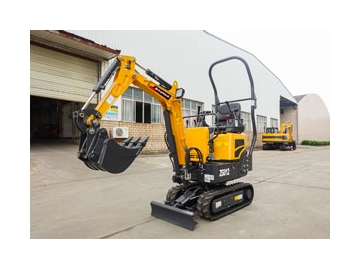

Mini Excavator ZG012
Request a Quote
The ZG012 mini excavator features an EPA engine that meets Euro 5 emission regulations, ensuring strong power, exceptional durability, and improved energy efficiency. As the smallest pilot-type mini excavator at 1 ton, it is easy to operate and maintain, making it highly convenient for users.
- Operating Weight 1,000KG
- Rated Power 7.6kW
- Bucket Capacity 0.02m³
| Model | ZG012 |
| Operating weight (kg) | 1,000 |
| Rated bucket capacity (m3) | 0.02 |
| Overall length (mm) | 3,200 |
| Overall width (mm) | 840 |
| Overall height (mm) | 2,320 |
| Standard track shoe width (mm) | 180 |
| Travelling speed (Km/hr) | 1±0.2 |
| Swing speed (rpm) | 9-12 |
| Max. gradeability (Degree) | 26.6 |
| Maximum digging radius (mm) | 3,050 |
| Maximum digging depth (mm) | 1,475 |
| Maximum digging height (mm) | 2750 |
| Bucket digging force (kN) | 8.83 |
| Arm digging force (kN) | 6.73 |
| Engine model | Koop KD192F |
| Rated power | 7.6kW/3,000rpm |
