Motor Iron Core Stamping Press
Request a Quote
Metal stamping machinery for electric motor iron core manufacturing
High-Speed Mechanical Press specifically designed for motor laminations. Featuring an excellent balanced structure and stable guidance system, it maintains stacking precision over extended periods while minimizing mold wear. Suitable for production environments of various industrial and home appliance motors.
Samples of Stamped Parts

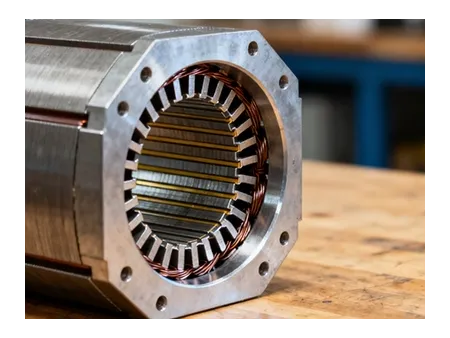

- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Hardware component stamping

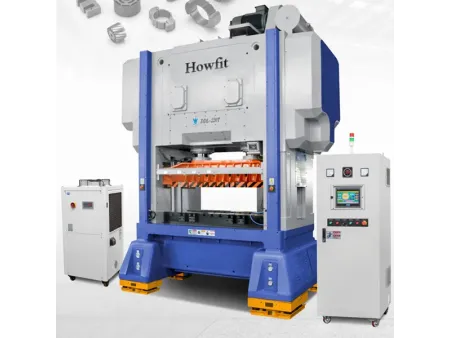

Crank Shaft Straight Side Press (220 ton), DDL-220T
Technical Specifications
| Press capacity (kN) | 2200 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 150-500 |
| Shut height (mm) | 370-420 |
| Worktable size (bolster) (mm) | 2000×950×250 |
| Slide area (mm) | 1900×700 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1400×250 |
| Motor (kW) | 45 |
| Machine weight (ton) | 40 |

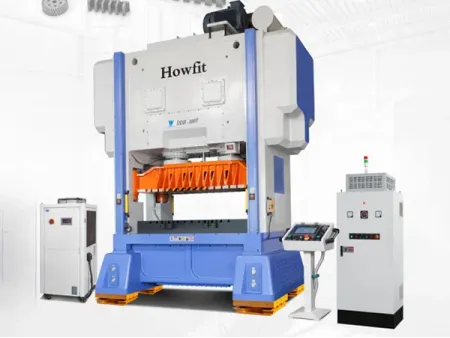

Crank Shaft Straight Side Press (300 ton), DDH-300T
Technical Specifications
| Press capacity (kN) | 3000 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 100-450 |
| Shut height (mm) | 400-450 |
| Worktable size (bolster) (mm) | 2300×1000 |
| Slide area (mm) | 2300×900 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1900×300 |
| Motor (kW) | 55×4P |
| Machine weight (ton) | 65 |
