Oil Free Silenced Air Compressor with Roll-Cage Construction Manufacturer

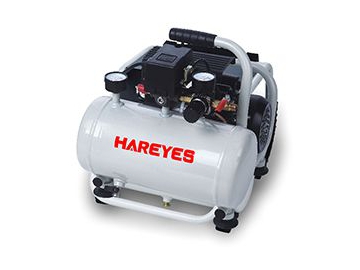

Oil Free Silenced Air Compressor with Roll-Cage Construction

Request a Quote

View All: http://aircomprs.com/3-2-silent-oil-free-air-compressor-roll-cage-construction.html

Air Displacement (L/min): 23～250
Discharge Pressure (Bar/PSI): (1.28Bar/57PSI)(7Bar/115PSI)(8Bar/125PSI)(10Bar/145PSI)
Power (W): 200~1500 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

HRS-G350-5L

Oil Free Silenced Air Compressor with Roll-Cage Construction 350W/0.45HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
350/0.45	8Bar/125PSI	50/60	L / Min	CFM	1400/1700	490410320
			88	3.11

HRS-G280-4L

Oil Free Silenced Air Compressor with Roll-Cage Construction 280W/0.37HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
280/0.37	8Bar/125PSI	50/60	L / Min	CFM	1400/1700	380370350
			58	2.05

HRS-G1500-18L

Oil Free Silenced Air Compressor with Roll-Cage Construction 1500W/2.0HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
1500/2.0	10Bar/145PSI	50/60	L / Min	CFM	1400/1700	600580580
			250	8.83

HRS-G200-5L

Oil Free Silenced Air Compressor with Roll-Cage Construction 200W//0.25HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
200/0.25	7Bar/115PSI	50/60	L / Min	CFM	2800/3360	415340340
			32	1.13

HRS-G750-6L

Oil Free Silenced Air Compressor with Roll-Cage Construction 750W/1.0HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
750/1.0	8Bar/125PSI	50/60	L / Min	CFM	1400/1700	460420390
			135	4.77

HRS-G550-6L

Oil Free Silenced Air Compressor with Roll-Cage Construction 550W/0.75HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
550/0.75	8Bar/125PSI	50/60	L / Min	CFM	1400/1700	440410410
			135	4.77

HRS-M150-3L

Oil Free Silenced Air Compressor with Roll-Cage Construction 200W/0.2HP

Power (W/HP)	Maximum Pressure (Bar/PSI)	Frequency (Hz)	Air Displacement		Speed (R.P.M)	Package Size (mm)
200/0.2	1.28Bar/57PSI	50/60	L / Min	CFM	1400/1700	310135310
			23	0.81

Model	Power	Air Tank Capacity Litre / Gal	Maximum Pressure	Voltage/Frequency	Air Displacement		speed (R.P.M)	N.W./G.W. KGS	Packing mm
Model	Power	Air Tank Capacity Litre / Gal	Maximum Pressure	Voltage/Frequency	Litre / Min	CFM	speed (R.P.M)	N.W./G.W. KGS	Packing mm
HRS-G350-5L	350W/0.45HP	5L/1.3Gal	8Bar / 125PSI	220V/50Hz	88	3.11	1400/1700	16/17.5	490410320
HRS-G280-4L	280W/0.37HP	4L/1.05Gal	8Bar / 125PSI	220V/50Hz	58	2.05	1400/1700	11.5/13	380370350
HRS-G1500-18L	1500W/2.0HP	18L/4.8Gal	10Bar / 145PSI	220V/50Hz	250	8.83	1400/1700	43.5/46	600580580
HRS-G200-5L	200W/¼HP	5L/1.3Gal	7Bar / 115PSI	220V/50Hz	32	1.13	2800/3360	12.5/14	415340340
HRS-G750-6L	750W/1.0HP	6L/1.6Gal	8Bar / 125PSI	220V/50Hz	135	4.77	1400/1700	19.5/21	460420390
HRS-G550-6L	550W/0.75HP	6L/1.6Gal	8Bar / 125PSI	220V/50Hz	135	4.77	1400/1700	19.5/21	440410410
HRS-M150-3L	200W/0.2HP	3L/0.8/Gal	1.28Bar / 57PSI	220V/50Hz	23	0.81	1400/1700	5/6	310135310

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Features

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
