Water-cooled Screw Chiller
  • Cooling capacity: 143~1064kW
  • Compressor type: Screw
  • Refrigerant: R22, R407C, R410A, R134A

Anges water-cooled screw chillers are suited to be used in applications with high ambient temperature, providing higher efficiency and lower cost in contrast to air-cooled chillers. The screw compressor used in the chiller can offer 20%-30% higher efficiency than common compressor.

A wide option of cooling capacities from 143kW to 1064kW is available to meet customer's application needs. These models of water-cooled screw chiller can be custom manufactured per your specific demands. Please email us or give us a call if you have request!

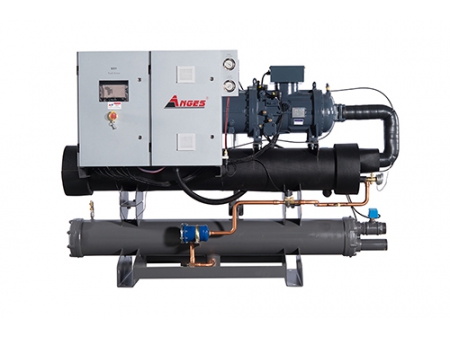

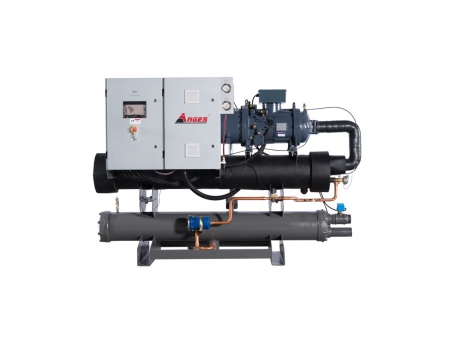

Water-cooled Screw Chiller (Single Compressor)
Model: AGS-040WSH

Cooling capacity: 143kW
Total input power: 31.1kW
Max. running current: 70.9A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-050WSH

Cooling capacity: 187.7 kW
Total input power: 39kW
Max. running current: 88.9 A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-060WSH

Cooling capacity: 201.6kW
Total input power: 42.9kW
Max. running current: 97.8 A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-075WSH

Cooling capacity: 269.7kW
Total input power: 56.1kW
Max. running current: 127.9 A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-085WSH

Cooling capacity: 317.8kW
Total input power: 63.7kW
Max. running current: 145.2A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-100WSH

Cooling capacity: 373.9kW
Total input power: 73.9kW
Max. running current: 168.4A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-120WSH

Cooling capacity: 437.9kW
Total input power: 88.3kW
Max. running current: 201.2A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-140WSH

Cooling capacity: 531.8kW
Total input power: 106kW
Max. running current: 241.1A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-160WSH

Cooling capacity: 614.7kW
Total input power: 122kW
Max. running current: 277.6A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-180WSH

Cooling capacity: 691.3kW
Total input power: 137kW
Max. running current: 311.3A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-220WSH

Cooling capacity: 866.5kW
Total input power: 168kW
Max. running current: 382.0A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-250WSH

Cooling capacity: 943.1kW
Total input power: 183kW
Max. running current: 417.1A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-280WSH

Cooling capacity: 1064.1kW
Total input power: 207kW
Max. running current: 471.3A
Compressor type: Screw
Evaporator:  Shell and tube

ModelCooling capacityTotal input powerMax.running currentCompressor typeEvaporator
AGS-040WSH
143kW31.1kW70.9AScrewShell and tube
AGS-050WSH
187.7 kW39kW88.9 AScrewShell and tube
AGS-060WSH
201.6kW42.9kW97.8 AScrewShell and tube
AGS-075WSH
269.7kW56.1kW127.9 AScrewShell and tube
AGS-085WSH
317.8kW63.7kW145.2AScrewShell and tube
AGS-100WSH
373.9kW73.9kW168.4AScrewShell and tube
AGS-120WSH
437.9kW88.3kW201.2AScrewShell and tube
AGS-140WSH
531.8kW106kW241.1AScrewShell and tube
AGS-160WSH
614.7kW122kW277.6AScrewShell and tube
AGS-180WSH
691.3kW137kW311.3AScrewShell and tube
AGS-220WSH
866.5kW168kW382.0AScrewShell and tube
AGS-250WSH
943.1kW183kW417.1AScrewShell and tube
AGS-280WSH
1064.1kW207kW471.3AScrewShell and tube

* Please download for details.

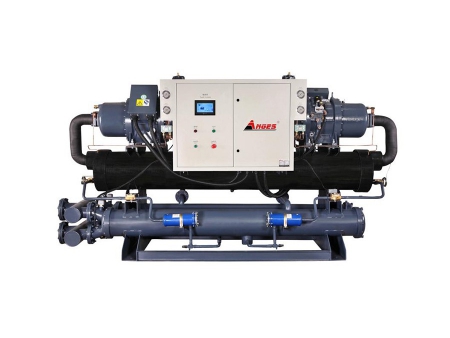

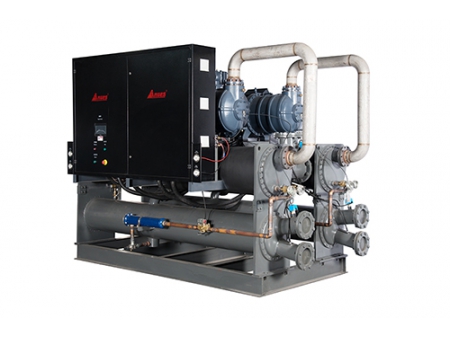

Water-cooled Screw Chiller (Dual Compressor)
Model: AGS-100WDH

Cooling capacity: 375.4kW
Total input power: 78kW
Max. running current: 177.8A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-120WDH

Cooling capacity: 403kW
Total input power: 85.8kW
Max. running current: 195.5A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-150WDH

Cooling capacity: 539.4kW
Total input power: 112.2kW
Max. running current: 255.7A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-170WDH

Cooling capacity: 635.6kW
Total input power: 127kW
Max. running current: 290.4A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-200WDH

Cooling capacity: 747.8kW
Total input power: 148kW
Max. running current: 337.3A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-240WDH

Cooling capacity: 875.8kW
Total input power: 176.6kW
Max. running current: 402.5A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-280WDH

Cooling capacity: 1064kW
Total input power: 212kW
Max. running current: 482.3A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-320WDH

Cooling capacity: 1229kW
Total input power: 244kW
Max. running current: 555.2A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-360WDH

Cooling capacity: 1229kW
Total input power: 244kW
Max. running current: 555.2A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-440WDH

Cooling capacity: 1733 kW
Total input power: 335kW
Max. running current: 763.9 A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-500WDH

Cooling capacity: 1886 kW
Total input power: 366kW
Max. running current: 834.1 A
Compressor type: Screw
Evaporator:  Shell and tube

Model: AGS-560WDH

Cooling capacity: 2128 kW
Total input power: 414kW
Max. running current: 942.6 A
Compressor type: Screw
Evaporator:  Shell and tube

ModelCooling capacityTotal input powerMax.running currentCompressor typeEvaporator
AGS-100WDH
375.4kW78kW177.8AScrewShell and tube
AGS-120WDH
403kW85.8kW195.5AScrewShell and tube
AGS-150WDH
539.4kW112.2kW255.7AScrewShell and tube
AGS-170WDH
635.6kW127kW290.4AScrewShell and tube
AGS-200WDH
747.8kW148kW337.3AScrewShell and tube
AGS-240WDH
875.8kW176.6kW402.5AScrewShell and tube
AGS-280WDH
1064kW212kW482.3AScrewShell and tube
AGS-320WDH
1229kW244kW555.2AScrewShell and tube
AGS-360WDH
1383kW273kW622.6AScrewShell and tube
AGS-440WDH
1733 kW335kW763.9 AScrewShell and tube
AGS-500WDH
1886 kW366kW834.1 AScrewShell and tube
AGS-560WDH
2128 kW414kW942.6 AScrewShell and tube

* Please download for details.

Features

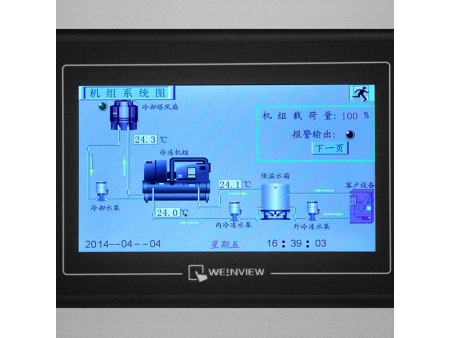

  • Siemens PLC control system, the integrated controller automatically operates and alerts when any faults occur;
  • Adopting multi-stage adjustment, it can realize four stages (25%-50%-75%-100%) and three stages (33%-66%-100%) of capacity control; Or non-stage capacity control;
  • Constructed with high-quality components from world's leading brands like Bitzer compressor, Hanbell compressor, Siemens PLC control to guarantee high-precision control;
  • Refrigerant R22, R407C, R410A, R134A are optional;

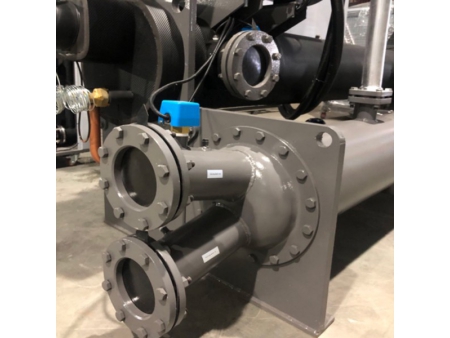

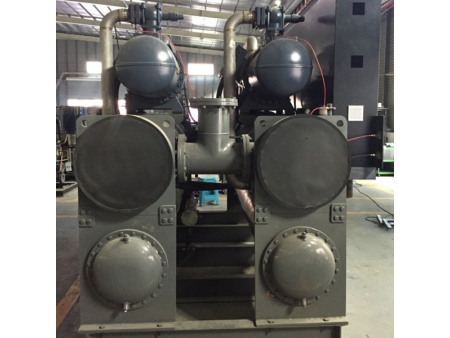

  • Shell & tube condenser is adopted, simple structure and high stability of heat transfer;
  • Screw compressor has a simple structure, containing fewer moving parts and wear parts (only 1/10 the moving parts of piston compressor);
  • Stepless variable-speed control can be achieved within a range of 10%-100%, improving energy efficiency;
Custom Options
  • Stainless steel plate evaporator
  • Common water pump or 4-8bar high pressure pump

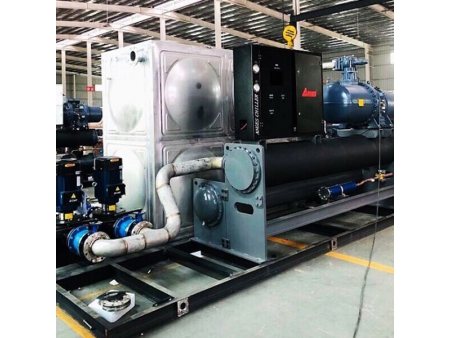

  • Water tank
  • Low noise option
Applications

Beverage Filling
A popular application of industrial chiller is in the beverage industry, where chillers are used to remove the heat gained from the process during injection blow molding and mixing.

Chemical Grinding
The grinding process of the grinding machine will change the molecular structure and produce high temperature which can affect the quality of raw materials and production efficiency. The water chiller can control the temperature, resulting in increased production and keeping grinding machine from damaging.
